PCAP touchscreen panel PC R10IQ3S-GCT2
multitouch screentouch screen10.4"

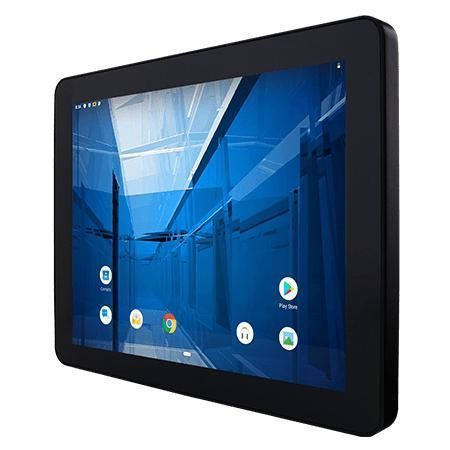

PCAP touchscreen panel PC - R10IQ3S-GCT2 - Winmate, Inc. - multitouch screen / touch screen / 10.4"
PCAP touchscreen panel PC - R10IQ3S-GCT2 - Winmate, Inc. - multitouch screen / touch screen / 10.4"
PCAP touchscreen panel PC - R10IQ3S-GCT2 - Winmate, Inc. - multitouch screen / touch screen / 10.4" - image - 2
PCAP touchscreen panel PC - R10IQ3S-GCT2 - Winmate, Inc. - multitouch screen / touch screen / 10.4" - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP touchscreen, multitouch screen, touch screen
Display size
10.4"
Processor
Qualcomm Snapdragon 660
Resolution
1024 x 768
Operating system
Android
Construction
fanless, aluminum frame, in metal housing
Mounting
VESA mounting
Applications
industrial
Protection level
IP65
Other characteristics
all-in-one, HMI, WiFi, Bluetooth, USB 2.0, Ethernet, RJ45, USB Type-C
Memory size

3 GB

Description

Key Features
  • Qualcomm Snapdragon™ 660 octa-core CPU, 2.2 GHz
  • Fanless cooling and ultra-low power design
  • Front IP65 protection against water and dust
  • True flat edge-to-edge front surface for easy cleaning
  • Rich I/O: 1 x USB 3.0 OTG (Type-C), 2 x USB 2.0 (Type-A), 1 x RS232/422/485, 1 x LAN (RJ45), 1 x Micro SD slot, 1 x Micro HDMI (optional)


Overview
  • Industrial-grade 10.4-inch PCAP panel PC designed for embedded HMI and operator interfaces.
  • True-flat front bezel reduces ingress points and simplifies maintenance in harsh environments.
  • PCAP multi-touch provides accurate, responsive touch input for modern user interfaces.
  • Android 9.0 platform support for embedded applications and software customization.
  • Flexible mounting: panel mount (default) and optional VESA for wall, desk or vehicle installations.


Certifications
  • CE
  • FCC


Technical specifications
  • Processor: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
  • Memory: 3 GB LPDDR4
  • Storage: eMMC onboard 32 GB
  • Operating System: Android 9.0
  • Wireless: WLAN (optional), Bluetooth (optional)
  • Touch / Glass: Projected Capacitive (PCAP) Multi-Touch
  • Display Size: 10.4 inches
  • Resolution: 1024 x 768
  • Panel Brightness: 350 nits (default); 1000 nits (optional)
  • Contrast Ratio: 1000:1
  • View Angles: 88/88/88/88
  • Active Area: 210.4 x 157.8 mm
  • USB: 2 x USB 2.0 (Type-A), 1 x USB 3.0 OTG (Type-C)
  • Serial: 1 x RS232/422/485 (default RS232)
  • LAN: 1 x RJ45 (USB to LAN AX88178A)
  • Video: 1 x Micro HDMI (optional)
  • SD Card Slot: 1 x Micro SD
  • Power: 12V DC with terminal block (default); 9–36V optional
  • Adapter: 12V 50W
  • Dimensions: 252.41 x 197.8 x 36.4 mm
  • Mounting: Panel mount (default); VESA mount (optional)
  • Enclosure: Aluminum
  • Cooling: Fanless design
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Shock: MIL-STD-810G Method 516.6 Procedure I
  • Vibration: MIL-STD-810G Method 514.6 Procedure I
  • IP Rating: Front IP65


Accessories
  • Quick Start Guide (hardcopy)
  • AC adapter 12V/50W
  • Power cord
  • 3-pin terminal block to DC jack cable
