PCAP touchscreen panel PC R12IQ3S-GCM2
multitouch screen1000 nits12.1"

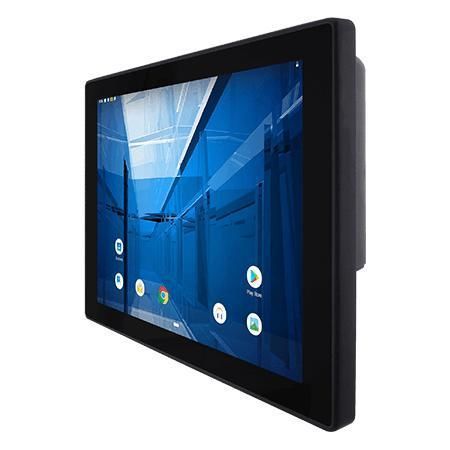

PCAP touchscreen panel PC - R12IQ3S-GCM2 - Winmate, Inc. - multitouch screen / 1000 nits / 12.1"
PCAP touchscreen panel PC - R12IQ3S-GCM2 - Winmate, Inc. - multitouch screen / 1000 nits / 12.1"
PCAP touchscreen panel PC - R12IQ3S-GCM2 - Winmate, Inc. - multitouch screen / 1000 nits / 12.1" - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP touchscreen, multitouch screen, 1000 nits
Display size
12.1"
Processor
Qualcomm Snapdragon 660
Resolution
1024 x 768
Memory
LPDDR4
Operating system
Android
Construction
fanless, aluminum frame
Mounting
VESA mounting
Applications
industrial
Protection level
IP65
Other characteristics
USB 2.0, with external power adapter, Ethernet, RJ45, USB Type-C
Memory size

3 GB

Description

Product
12.1" front IP65 PCAP panel PC R12IQ3S-GCM2 powered by Qualcomm Snapdragon™ 660, fanless design, Android 9.0, 3 GB LPDDR4, 32 GB eMMC.

Key Features
  • Qualcomm Snapdragon™ 660 octa-core 2.2 GHz
  • Fanless cooling and low power consumption
  • Front IP65 protection against water and dust
  • True flat edge-to-edge front for easy cleaning
  • Rich I/O: 1 x USB 3.0 OTG (Type-C), 2 x USB 2.0 (Type A), 1 x RS232/422/485, 1 x RJ45 (LAN), 1 x Micro SD slot, 1 x Micro HDMI (optional)

Overview
  • True Flat Surface minimizes dust accumulation and simplifies maintenance
  • Projected Capacitive (PCAP) multi-touch for responsive HMI interaction
  • Supports Android 9.0 for embedded applications and custom software
  • VESA mounting for wall, desk or in-vehicle installation with accessible I/O
  • Front IP65 rating suitable for industrial environments

Certifications
  • CE
  • FCC

Accessories (supplied / typical)
  • Quick Start Guide (hardcopy)
  • AC Adapter 12V/50W
  • Power Cord
  • 3-pin Terminal Block to DC Jack

IO & Expandability
  • USB: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C)
  • Serial: 1 x RS232/422/485 (default RS232)
  • LAN: 1 x RJ45 (USB-to-LAN AX88178A)
  • Video: 1 x Micro HDMI (optional)
  • Audio: 2 x Speaker (optional)
  • SD Card: 1 x Micro SD slot

Environmental & Ruggedness
  • Operating humidity: 10% to 90% RH, non-condensing
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -20°C to 60°C
  • Shock: MIL-STD-810G Method 516.6 Procedure I
  • Vibration: MIL-STD-810G Method 514.6 Procedure I
  • Front IP rating: IP65

Technical specifications
  • Processor: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
  • Memory: 3 GB LPDDR4
  • Storage: 32 GB eMMC (onboard)
  • Operating System: Android 9.0
  • Display size: 12.1 inches
  • Resolution: 1024 x 768
  • Panel Brightness: 500 nits (default); 1000 nits (optional)
  • Contrast Ratio: 1000:1
  • Active Area: 245.76 x 184.32 mm
  • Dimensions: 296.2 x 226.7 x 45.5 mm
  • Mounting: VESA mount
  • Enclosure: Aluminum
  • Power Rating: 12V DC (terminal block) default; 9–36V optional
  • Adapter: 12V 50W
