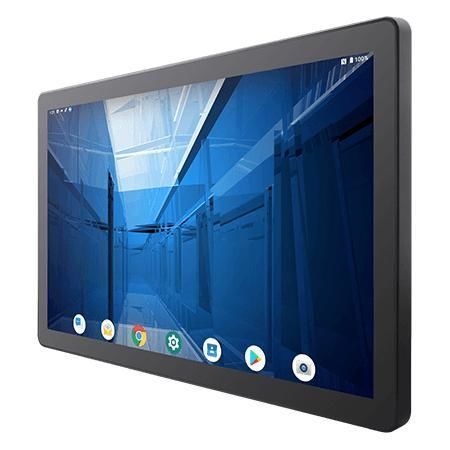

PCAP touchscreen panel PC W24IQ3S-GCA2

multitouch screen24"Qualcomm Snapdragon 660

Overview
The W24IQ3S-GCA2 is a 24-inch industrial panel PC featuring a truly flat front with IP65 protection, fanless cooling and Android 9.0 support for embedded HMI applications.

Key Features

• Processor: Qualcomm® Snapdragon™ 660 octa-core 2.2 GHz
• Fanless cooling and ultra-low power consumption
• Front IP65 water and dust protection with edge-to-edge true flat surface
• Projected capacitive (PCAP) multi-touch display
• Extensive I/O: 1 x USB 3.0 OTG (Type-C), 2 x USB 2.0 (Type A), 1 x RS232/422/485, 1 x RJ45 LAN, 1 x Micro SD slot, 1 x Micro HDMI (optional)

Certifications

• CE
• FCC

Applications
Designed for industrial HMI, embedded control, kiosk and vehicle installations where a cleanable front, reliable I/O access and VESA mounting are required.

Technical specifications

• Memory: 3 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 9.0
• Display Size / Resolution: 24.0 inches / 1920 x 1080
• Brightness / Contrast: 250 nits / 3000:1
• Active Area: 527.04 x 296.46 mm
• USB: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x RJ45 (USB to LAN AX88178A)
• Video: 1 x Micro HDMI (optional)
• SD Card: 1 x Micro SD slot
• Power: 12V DC via terminal block (default); 9~36V optional; Adapter 12V 50W
• Dimensions: 588 x 358 x 55 mm
• Mounting: VESA 100 x 100 mm (default); panel mount optional
• Enclosure: Metal housing with plastic bezel; fanless design
• Operating Temp / Humidity: 0°C to 50°C / 10% to 90% RH non-condensing
• Shock & Vibration: MIL-STD-810G compliant
• Front IP Rating: IP65

Accessories

• Quick Start Guide (hardcopy)
• AC adapter 12V/50W, power cord
• 3-pin terminal block to DC jack
