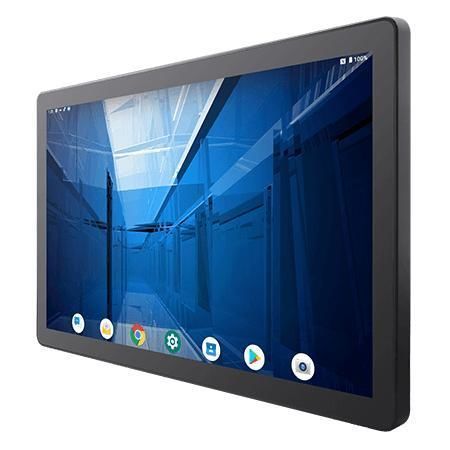

PCAP touchscreen panel PC W22IQ3S-GCA3

multitouch screen21.5"Qualcomm Snapdragon 660

Overview
The W22IQ3S-GCA3 is a 21.5-inch front IP65 PCAP Panel PC powered by a Qualcomm Snapdragon 660 platform. Designed for industrial HMI and embedded applications, it features a true-flat edge-to-edge front, fanless cooling, low power consumption and Android OS support for flexible software integration.

Key Features

• Qualcomm Snapdragon™ 660 octa-core CPU (up to 2.2 GHz)
• 21.5" Full HD (1920 x 1080) projected capacitive multi-touch (PCAP)
• Front IP65 protection against water and dust
• Fanless cooling and energy-efficient operation
• Rich I/O: 1 x USB 3.0 OTG (Type-C), 2 x USB 2.0 (Type A), 1 x RS232/422/485, 1 x RJ45 LAN, 1 x Micro SD slot, 1 x Micro HDMI (optional)

Product Highlights

• True-flat front: Edge-to-edge bezel simplifies cleaning and reduces ingress points for liquids and dust.
• PCAP multi-touch: Accurate multi-touch for industrial operator interfaces and kiosk applications.
• Android support: Native Android 9.0 platform for embedded app development and system integration.
• Flexible mounting: VESA 100 x 100 mm standard for wall, desk or vehicle installations; panel mount optional.
• Industrial reliability: Metal housing with plastic bezel, MIL-STD shock and vibration ratings.

Certifications

• CE
• FCC

Technical specifications

• Processor: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
• Memory: 3 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 9.0
• WLAN / BT: Optional support
• Display Size: 21.5 inches
• Touch / Glass: Projected Capacitive Multi-Touch
• Resolution: 1920 x 1080
• Brightness: 250 nits
• Contrast Ratio: 3000:1
• Viewing Angles: 89/89/89/89
• Active Area: 476.64 x 268.11 mm
• USB: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x RJ45
• Video: 1 x Micro HDMI (optional)
• SD Slot: 1 x Micro SD
• Power: 12V DC with terminal block (default); 9~36V optional
• Adapter: 12V 50W
• Dimensions: 530 x 322 x 51 mm
• Mounting: VESA 100 x 100 mm (default); panel mount optional
• Enclosure: Metal housing with plastic bezel
• Cooling: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temp: 0°C to 50°C
• Storage Temp: -20°C to 60°C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP Rating: Front IP65
• Accessories: Quick Start Guide (hardcopy); AC adapter 12V/50W; power cord; 3-pin terminal block to DC jack
• Controls: 1 x Power Button (optional)
