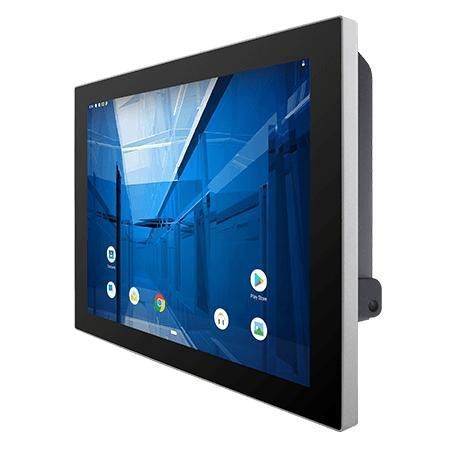

PCAP touchscreen panel PC R15IQ3S-GCC3

multitouch screen15"Qualcomm Snapdragon 660

KEY FEATURES

• Qualcomm Snapdragon™ 660 octa-core 2.2 GHz CPU
• Fanless cooling and ultra-low power consumption
• Front IP65 protection against water and dust
• True flat, edge-to-edge front surface for easy cleaning
• Rich I/O: 1 x USB 3.0 OTG (Type-C), 2 x USB 2.0 (Type-A), 1 x RS232/422/485, 1 x RJ45 LAN, 1 x Micro SD slot, 1 x Micro HDMI (optional)

OVERVIEW
Signature true flat surface
The edge-to-edge flat front reduces ingress points for liquids and prevents dust accumulation, simplifying cleaning and maintenance in industrial settings.

Convenient onscreen operations with PCAP multi-touch
The PCAP multi-touch display provides responsive, intuitive touch input suited for embedded HMI applications.

Android OS support
Supports Android 9.0 for embedded application integration and software customization.

VESA mounting and flexible installation
Supports VESA 100 x 100 mm mounting for wall, desk or in-vehicle installations while keeping I/O accessible.

Water and dust protection
The front panel meets IP65 protection (model dependent), suitable for harsh industrial environments.

TECHNICAL SPECIFICATIONS

• Model: R15IQ3S-GCC3
• Processor: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
• Memory: 3 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating system: Android 9.0
• WLAN: Optional
• Bluetooth: Optional
• Touch/Glass: Projected capacitive multi-touch
• Display size: 15.0 inches
• Resolution: 1024 x 768
• Panel brightness: 300 nits (default); 1000 nits (optional)
• Contrast ratio: 2000:1
• Viewing angles: 88/88/88/88
• Active area: 304.1 x 228.1 mm
• USB: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x RJ45 (USB to LAN AX88178A)
• Video: 1 x Micro HDMI (optional)
• Audio: 2 x speaker (optional)
• SD slot: 1 x Micro SD
• Certifications: CE, FCC
• Power rating: 12V DC with terminal block (default); 9~36V optional
• Adapter: 12V 50W
• Dimensions: 363 x 278 x 45 mm
• Mounting: VESA mount 100 x 100 mm (default); panel mount optional
• Enclosure: Aluminum
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: Front IP65
• Accessories: Quick Start Guide (hardcopy), AC adapter 12V/50W, power cord, 3-pin terminal block to DC jack
• Control: 1 x power button (optional)
