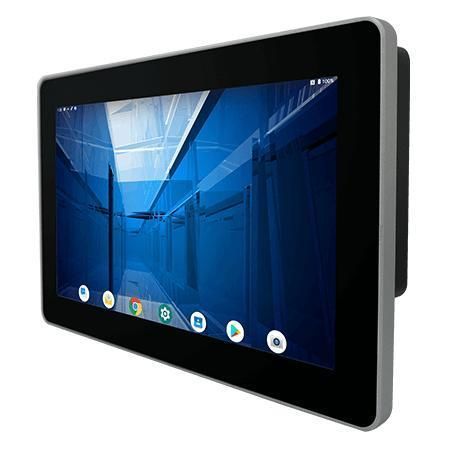

PCAP touchscreen panel PC W10IQ3S-GCH2

multitouch screen10.1"Qualcomm Snapdragon 660

Product
The W10IQ3S-GCH2 is a 10.1-inch G-WIN GC-series front IP65 PCAP Panel PC with a Qualcomm® Snapdragon™ 660 octa-core 2.2 GHz processor, fanless cooling, low power consumption and Android 9.0 support. It is designed for industrial HMI and customer-facing applications where easy cleaning and robust I/O access are required.

Key Features

• Qualcomm® Snapdragon™ 660 octa-core, 2.2 GHz CPU
• Fanless cooling system and ultra-low power consumption
• Front IP65 protection against water and dust
• True flat, edge-to-edge front surface for easy cleaning
• PCAP projected capacitive multi-touch screen
• I/O: 1 x USB 3.0 OTG (Type-C); 2 x USB 2.0 (Type A); 1 x RS232/422/485; 1 x RJ45 LAN; 1 x Micro SD slot; 1 x Micro HDMI (optional)

Certifications

• CE
• FCC

Overview

• Signature True Flat Surface: Flat edge-to-edge bezel simplifies cleaning and reduces dust and liquid ingress points.
• Projected Capacitive Multi-Touch: PCAP multi-touch delivers accurate touch response for HMI and POS use cases.
• Android Support: Android 9.0 platform for embedded application development and software integration.
• Mounting Options: Panel-mount by default; optional VESA for wall, desk or vehicle installations.
• Water and Dust Protection: Front IP65 rating suitable for industrial environments requiring splash and dust resistance.

IO & Expansion

• USB: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x RJ45 (USB to LAN AX88178A)
• Video: 1 x Micro HDMI (optional)
• Audio: 1 x Speaker (optional)
• Storage: 1 x Micro SD card slot

Accessories

• Quick Start Guide (hardcopy)
• AC Adapter 12V/50W
• Power Cord
• 3 Pin Terminal Block to DC Jack

Notes
Aluminum enclosure with fanless thermal design. Optional features on certain configurations include Micro HDMI, speaker, extended DC input (9–36V), VESA mounting and wireless modules (WLAN/BT).

Technical specifications

• Processor: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
• Memory: 3 GB LPDDR4
• Storage: Onboard 32 GB eMMC
• Operating System: Android 9.0
• Display Size: 10.1 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1280 x 800
• Panel Brightness: 350 nits (1000 nits optional)
• Contrast Ratio: 800:1
• View Angles: 85/85/85/85
• Active Area: 216.96 x 135.6 mm
• USB Ports: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C)
• Serial Port: 1 x RS232/422/485 (default RS232)
• LAN: 1 x RJ45
• Video: 1 x Micro HDMI (optional)
• Audio: 1 x Speaker (optional)
• SD Card Slot: 1 x Micro SD Card Slot
• Certification: CE, FCC
• Power Rating: 12V DC with Terminal Block (default); 9–36V optional
• Adapter: 12V 50W
• Dimension: 262 x 172 x 40.2 mm
• Mounting: Panel mount (default); VESA mount optional
• Enclosure: Aluminum
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP Rating: Front IP65
• Included Accessories: Quick Start Guide (hardcopy), AC Adapter 12V/50W, Power Cord, 3 Pin Terminal Block to DC Jack
• Control: 1 x Power Button (optional)
