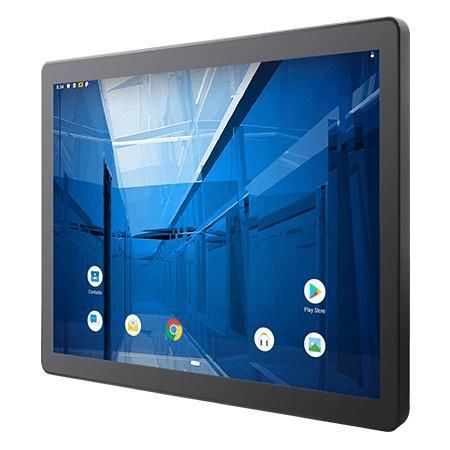

Panel PC with touch screen R19IQ3S-GCM1

PCAP touchscreenmultitouch screencapacitive touch screen

Overview
The R19IQ3S-GCM1 is a 19" G-WIN GC-Series front IP65 projected capacitive (PCAP) panel PC powered by a Qualcomm® Snapdragon™ 660 octa-core 2.2 GHz processor. The fanless design and low power consumption suit continuous industrial use while the true flat, edge-to-edge front surface simplifies cleaning and improves resistance to water and dust.

Key Features

• Qualcomm® Snapdragon™ 660 octa-core, 2.2 GHz CPU
• Fanless cooling system with ultra-low power consumption
• Front IP65 protection against water and dust
• True flat, edge-to-edge front surface for easy cleaning
• Extensive I/O: 1 x USB 3.0 OTG (Type-C), 2 x USB 2.0 (Type A), 1 x RS232/422/485 (default RS232), 1 x RJ45, 1 x Micro SD slot, 1 x Micro HDMI (optional)

Product Highlights

• True flat front — Edge-to-edge bezel and flat surface reduce ingress points and simplify maintenance.
• PCAP multi-touch — Projected capacitive multi-touch for accurate and responsive HMI interaction.
• Android support — Supports Android 9.0 for embedded application development and software integration.
• Flexible mounting — VESA 100 x 100 mm support for wall, desk or in-vehicle installation; optional panel mount.
• Industrial protection — Front IP65 rating suitable for harsh industrial environments.

Certifications

• CE
• FCC

Technical Specifications

• Processor: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
• Memory: 3 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 9.0
• WLAN: Support (Optional)
• Bluetooth: Support (Optional)
• Display Size: 19.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1280 x 1024
• Panel Brightness: 250 nits
• Contrast Ratio: 1000:1
• View Angles: 85, 85, 80, 80
• Active Area: 376.32 x 301.06 mm
• USB Port: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C)
• Serial Port: 1 x RS232/422/485 (Default RS232)
• LAN: 1 x LAN (RJ45)
• Video: 1 x Micro HDMI (Optional)
• SD Card Slot: 1 x Micro SD Card Slot
• Certification: CE, FCC
• Power Rating: 12V DC with Terminal Block (Default); 9~36V (Optional)
• Adapter: 12V 50W
• Dimension: 445 x 370 x 51 mm
• Mounting: VESA mount (100 x 100 mm) (Default); Panel mount (Optional)
• Enclosure: Metal housing with plastic bezel
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP Rating: Front IP65
• Accessories: Quick Start Guide (Hardcopy); AC Adapter 12V/50W; Power Cord; 3 Pin Terminal Block to DC Jack
• Button: 1 x Power Button (Optional)
