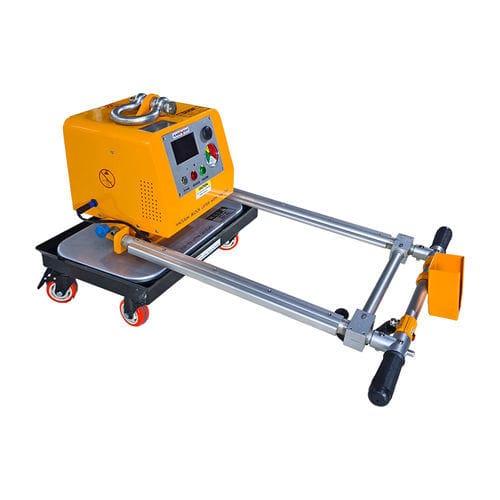

Block lifter AVBLH380

The Aardwolf AVBLH380 is a compact, battery-powered vacuum block and slab lifter designed for efficient handling and positioning of heavy stone, concrete and other suitable non-porous materials weighing up to 380 kg.

Equipped with a large 500 × 300 mm vacuum pad, the AVBLH380 combines high lifting capacity with a compact 33 kg design, making it suitable for construction sites, workshops and installation applications.

A key advantage is its integrated ergonomic handle with dual controls. Operators can control the vacuum directly from the handle during manual handling or use the body-mounted controls when the lifter is connected to other lifting equipment.

The AVBLH380 supports three flexible handling methods: manual handling, forklift operation and crane lifting via its built-in attachment point.

Its automatic vacuum system continuously monitors vacuum conditions and provides real-time visual and audio feedback. The visual monitor displays vacuum levels, while warning alarms alert the operator when required.

Powered by a clip-in 24V, 12Ah battery, the lifter provides up to 2.5 hours of continuous operation without requiring an external compressed-air supply or mains electrical connection.

The vacuum pad can also be replaced quickly, helping adapt the unit to different lifting requirements and reducing downtime.The Aardwolf AVBLH380 is a compact, battery-powered vacuum block and slab lifter designed for efficient handling and positioning of heavy stone, concrete and other suitable non-porous materials weighing up to 380 kg.

Equipped with a large 500 × 300 mm vacuum pad, the AVBLH380 combines high lifting capacity with a compact 33 kg design, making it suitable for construction sites, workshops and installation applications.

A key advantage is its integrated ergonomic handle with dual controls. Operators can control the vacuum directly from the handle during manual handling or use the body-mounted controls when the lifter is connected to other lifting equipment.

The AVBLH380 supports three flexible handling methods: manual handling, forklift operation and crane lifting via its built-in attachment point.

Its automatic vacuum system continuously monitors vacuum conditions and provides real-time visual and audio feedback. The visual monitor displays vacuum levels, while warning alarms alert the operator when required.

Powered by a clip-in 24V, 12Ah battery, the lifter provides up to 2.5 hours of continuous operation without requiring an external compressed-air supply or mains electrical connection.

The vacuum pad can also be replaced quickly, helping adapt the unit to different lifting requirements and reducing downtime.The Aardwolf AVBLH380 is a compact, battery-powered vacuum block and slab lifter designed for efficient handling and positioning of heavy stone, concrete and other suitable non-porous materials weighing up to 380 kg.

Equipped with a large 500 × 300 mm vacuum pad, the AVBLH380 combines high lifting capacity with a compact 33 kg design, making it suitable for construction sites, workshops and installation applications.

A key advantage is its integrated ergonomic handle with dual controls. Operators can control the vacuum directly from the handle during manual handling or use the body-mounted controls when the lifter is connected to other lifting equipment.

The AVBLH380 supports three flexible handling methods: manual handling, forklift operation and crane lifting via its built-in attachment point.

Its automatic vacuum system continuously monitors vacuum conditions and provides real-time visual and audio feedback. The visual monitor displays vacuum levels, while warning alarms alert the operator when required.

Powered by a clip-in 24V, 12Ah battery, the lifter provides up to 2.5 hours of continuous operation without requiring an external compressed-air supply or mains electrical connection.

The vacuum pad can also be replaced quickly, helping adapt the unit to different lifting requirements and reducing downtime.

Key Features

• Automatic Vacuum System: Ensures safe operation with real-time visual and audio feedback.
• Dual Controls: Handle-mounted for precise control or body-mounted for wider accessibility.
• Easy Pad Replacement: Quick and hassle-free pad changes.
• Visual Monitor & Alarm: Displays vacuum levels in real time with warning alerts.
• Built-in Handle: Ergonomic design for easy and safe manual handling.
• Versatile Operation: Supports manual use, forklifts, or cranes.
• High Capacity: Lifts up to 380 kg (837 lbs) using the 500 x 300 mm vacuum pad.
• Efficient Battery: Powered by a 24V, 12Ah battery.

Specifications
Metric | Imperial
Working Load Limit | 380 kg | 837 lbs
Suction Pad Size | 500 x 300 mm | 19.7" x 11.8"
Net Weight | 33 kg | 72 lbs
Battery Capacity | 24V, 12Ah | —
Continuous Working Time | 2.5 hours | —
Vacuum Flow Rate | 70 liters/min | —
Motor | 24V, 4.5A | —

Technical Specifications

• Working Load Limit: 380 kg (837 lbs)
• Suction Pad Size: 500 x 300 mm (19.7" x 11.8")
• Net Weight: 33 kg (72 lbs)
• Battery Capacity: 24V, 12Ah (clip-in)
• Continuous Working Time: 2.5 hours
• Vacuum Flow Rate: 70 liters/min
• Motor: 24V, 4.5A
• Control: Handle-mounted buttons and optional body-mounted controls
• Operation Modes: Manual handling, forklift mount, crane hook attachment
