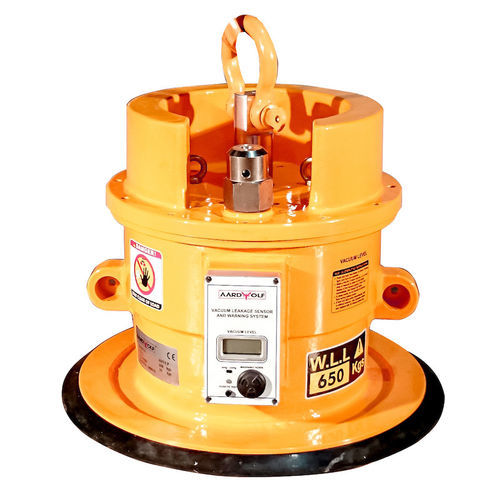

Metal sheet vacuum lifting device AMMVL650

for stone slabsfor platesfor sheets

General
No external power required. Suitable for horizontal handling of non-porous sheets and plates including diamond-sawn or polished granite, engineered stone, metals, plastics and fiberglass. An automatic self-cycling valve at the piston base controls the vacuum grip-and-release cycle.

Features

• Self-powered, self-cycling valve operation
• Audible alarm powered by a non-rechargeable 9V battery
• Vacuum gauge for visual low-vacuum warning
• Aluminum construction with telescopic front handle
• Lightweight for easier manoeuvring

Specifications
Metric | Imperial
Number of pads: 1
Pad diameter (seal to seal): Ø450 mm | 17.7 in
Working load limit (WLL): 650 kg | 1433 lb
Net weight: 36 kg | 79 lb
Gross weight: 64 kg | 141 lb
Packaging dimensions: L1020 x W560 x H900 mm | 40 x 22 x 35.4 in

Battery information
Power supply: 9V non-rechargeable battery
Warranty: 6 months (alarm system)

Note
For materials with rough or textured surfaces such as exfoliated granite, concrete or textured metals, use electric or pneumatic vacuum lifters equipped with foam rubber pads.

Characteristics / Technical specifications

• Model: AMMVL650
• Type: Mono mechanical vacuum lifter, self-powered
• Applications: Horizontal handling of non-porous sheets and plates
• Number of pads: 1
• Pad diameter: Ø450 mm (17.7 in)
• Working load limit: 650 kg (1433 lb)
• Net weight: 36 kg (79 lb)
• Gross weight: 64 kg (141 lb)
• Packaging dimensions: 1020 x 560 x 900 mm
• Alarm power: 9V non-rechargeable battery
• Warranty: 6 months
