Rotary vacuum lifter AERV-180
automaticpivotingload rotating

Rotary vacuum lifter - AERV-180 - AARDWOLF INDUSTRIES LLC - automatic / pivoting / load rotating
Rotary vacuum lifter - AERV-180 - AARDWOLF INDUSTRIES LLC - automatic / pivoting / load rotating
Add to favorites
Compare this product

Characteristics

Options
rotary, automatic, pivoting, load rotating
Product applications
for stone slabs, glass plate
Power
electric, AC-power
Carrying capacity

Max.: 160 kg
(353 lb)

Min.: 160 kg
(353 lb)

Number of cups

4 unit

Weight

Max.: 60 kg
(132.28 lb)

Min.: 60 kg
(132.28 lb)

Description

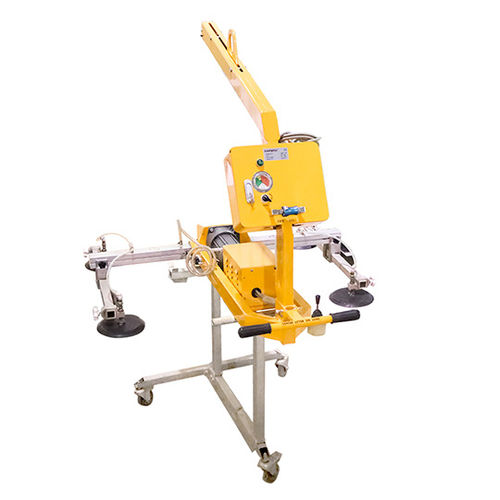

The Aardwolf AERV-180 Electric Rotating Vacuum Lifter is designed for lifting, rotating and positioning stone slabs and glass sheets in fabrication workshops and industrial handling applications. With a working load limit of 160 kg (353 lb), it supports material rotation through a 90°–180° range for handling and positioning panels.

Powered by a 220V single-phase electric motor, the vacuum lifting system features four 200 mm suction pads, a gas spring-controlled hook attachment and a self-adjusting balancing mechanism. An ON/OFF slide valve controls vacuum gripping and release, while a pressure control system automatically activates the vacuum pump when the vacuum level falls below the required threshold. An integrated audio-visual alarm provides operational warnings.

Features
  • 220 V single‑phase electric motor.
  • Gas‑spring controlled hook attachment for quick engagement.
  • Self‑adjustment and balance to accommodate sheet variations.
  • Attach/release via an ON/OFF slide valve for rapid operation.
  • Pressure control system automatically restarts the vacuum pump if pressure falls below set limit.
  • Audio/visual safety system and vacuum gauge for operator alerts.


Specifications
Metric | Imperial
Working load limit: 160 kg | 353 lb
Net weight: 60 kg | 132 lb
Pad diameter: 200 mm | 8"
Number of pads: 4 | -

Motor information
Input supply: AC 220 V - single phase 50/60 Hz
Motor power: 1/4 HP
Vacuum flow rate: 4.1 / 4.7 m3/h

Characteristics / Technical specifications
  • Brand: Aardwolf
  • Model / Product code: AERV-180
  • Working load limit (WLL): 160 kg (353 lb)
  • Net weight: 60 kg (132 lb)
  • Pad diameter: 200 mm (8")
  • Number of pads: 4
  • Input supply: AC 220 V, single phase 50/60 Hz
  • Motor power: 1/4 HP
  • Vacuum flow rate: 4.1 / 4.7 m3/h
  • Key functions: 180° electric rotation for lifting/rotating stone and glass sheets; gas‑spring hook attachment; ON/OFF slide valve for attach/release; automatic pressure‑activated vacuum pump; audio/visual safety system
