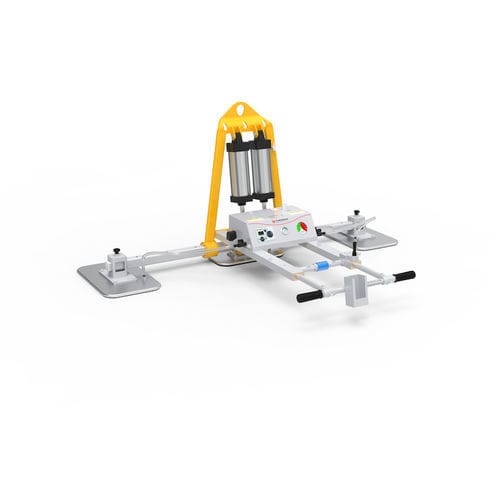

The Aardwolf AVLP3-600P is a heavy-duty pneumatic vacuum lifter designed for lifting, tilting, and handling smooth and rough marble and granite slabs. With a maximum lifting capacity of 600 kg in the horizontal position and 300 kg in the vertical position, this industrial vacuum lifting equipment provides an efficient solution for stone fabrication workshops, manufacturing facilities, and construction applications.
Powered by compressed air, the AVLP3-600P features a pneumatic tilting mechanism that allows controlled 0–90° movement between horizontal and vertical positions. Its three vacuum pads provide secure gripping of stone slabs, while the integrated vacuum reserve tank helps maintain suction in the event of an interruption to the vacuum supply.
For enhanced operational safety, the vacuum lifter incorporates a rechargeable 12V lithium-ion battery-powered audio and visual low-vacuum alarm. A convenient ON/OFF slide valve enables operators to control vacuum attachment and release.
Features- Pneumatic tilting 0–90° (vertical ↔ horizontal) driven by a pneumatic piston for smooth, repeatable adjustments.
- Stainless-steel vacuum tank for fail-safe retention in case of sudden loss of vacuum pump power.
- Acoustic and visual alarm powered by a rechargeable 3.7V LiPo battery to warn on low vacuum level.
- Slide (ON/OFF) valve for reliable attachment and release of loads from the vacuum pads.
SpecificationsMetric / Imperial:
Number of pads: 3
Pad sizes: 2 × 520 × 320 mm (outer); 1 × 420 × 220 mm (central) / 20.5 × 12.6 in; 16.5 × 8.7 in
Working load limit (WLL): Vertical: 300 kg (661 lb); Horizontal: 600 kg (1323 lb)
Net weight: 72 kg (159 lb)
Gross weight: 101 kg (223 lb)
Packaging dimensions: 1480 × 390 × 960 mm (58.3 × 15.3 × 37.8 in)
Battery informationAlarm battery: 3.7V LiPo, 2000 mAh × 1
Adapter: DC 5V, 1A
Standby time: up to 720 hours
Charging time: 2 hours
Continuous operation (alarm active): up to 7 hours
Charger / AdapterAdapter: DC 5V-1A (included for alarm battery)
Full charge time: approx. 2 hours
Compressed air requirementAir consumption: 180 L/min
Supply pressure: 5 bar (≈72 psi)
Technical specifications- Model: AVLP3-600P
- Brand: Aardwolf
- Application: Lifting and tilting marble & granite slabs (smooth or textured)
- Drive: Compressed air
- Tilt range: 0–90° (pneumatic piston)
- Vacuum safety tank: stainless steel
- Alarm: acoustic & visual, rechargeable 3.7V LiPo
- Control: Slide ON/OFF valve
- Pads: 3 (2 outer 520×320 mm, 1 central 420×220 mm)
- WLL: Vertical 300 kg; Horizontal 600 kg
- Net weight: 72 kg; Gross weight: 101 kg
- Packaging: 1480×390×960 mm
- Air: 180 L/min at 5 bar
