4-point vacuum lifting device ARGL-500

glass platehorizontalvertical

General

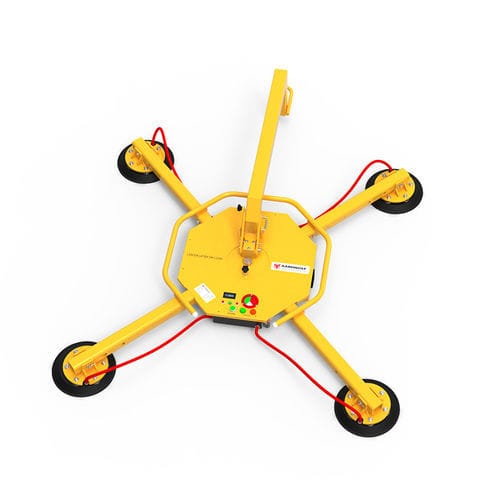

The DC-powered vacuum glass lifter ARGL-500 is designed to lift and transport glass elements up to 500 kg. It is compatible with forklifts, counterbalance cranes and overhead hoists for installation of windows and large glass panes. On-board DC power enables cordless operation on site. Movable vacuum pads and extension arms allow handling of various glass sizes and shapes.

Features

• Spring-loaded vacuum pads.
• Manual rotation 360° with 45° step.
• Manual tilt 90° in 15° increments.
• Removable arm — minimum depth 150 mm.
• Integrated vacuum reservoir tank.
• Integrated instrumentation for vacuum and power monitoring.
• Visual and audible warning devices.
• Self-contained 12 V battery power supply (high capacity).
• Extension arms for handling large sheets.
• Adjustable arms.

Specifications
Metric — Imperial
Number of pads: 4 — -
Pad diameter: 300 mm — 11.8"
Working load limit: Vertical: 400 kg; Horizontal: 500 kg — 882 lb; 1102 lb
Net weight: 69 kg — 152 lb
Gross weight: 95 kg — 209 lb
Packaging dimensions: L1070 x W970 x H450 mm — 42.1" x 38.2" x 17.5"

Battery (lifter)
Code battery: M12B6 Milwaukee
Type of battery: Lithium-ION
Voltage: 12V
Capacity: 6.0 Ah
Quantity: 1
Continuous operation time: ~2 hours
Working time: ~6 hours

Battery charger
Code battery charger: C12C Milwaukee
Input supply voltage: 100-240 VAC
Output voltage: 12V
Output current: 3.0 A
Quantity: 1
Full charge time: 2.5 hours
Weight: 460 g

Motor / Vacuum
Vacuum flow rate: 32.5 liters/minute
Motor: 12V DC - 4A

Technical specifications

• Model: ARGL-500
• Max horizontal capacity: 500 kg
• Max vertical capacity: 400 kg
• Number of suction pads: 4
• Pad diameter: 300 mm
• Manual rotation: 360° (45° step)
• Manual tilt: 90° (15° increments)
• Removable arm minimum depth: 150 mm
• Integrated vacuum reservoir tank and monitoring instrumentation
• Visual and audible warning devices
• Power supply: self-contained 12 V battery (M12B6 Milwaukee, 6.0 Ah)
• Continuous operation (battery): ~2 hours; Working time: ~6 hours
• Battery charger: C12C Milwaukee (100-240 VAC input, 12V output, 3.0 A)
• Vacuum flow rate: 32.5 L/min; Motor: 12V DC - 4A
• Net weight: 69 kg; Gross weight: 95 kg
• Packaging dimensions: L1070 x W970 x H450 mm
