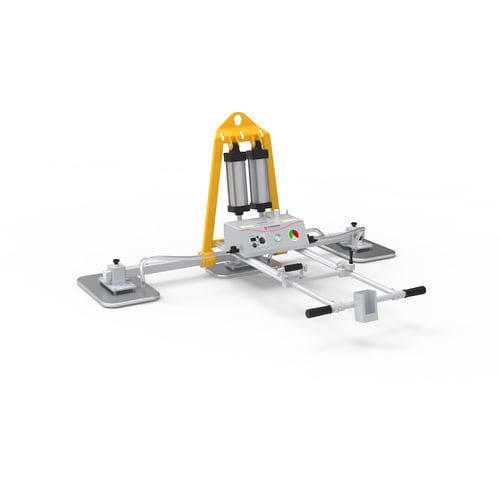

Slab vacuum lifter AVLP3-600
for stone slabshorizontalvertical

Slab vacuum lifter - AVLP3-600 - AARDWOLF INDUSTRIES LLC - for stone slabs / horizontal / vertical
Slab vacuum lifter - AVLP3-600 - AARDWOLF INDUSTRIES LLC - for stone slabs / horizontal / vertical
Add to favorites
Compare this product

Characteristics

Product applications
for slabs, for stone slabs
Type
horizontal, vertical
Power
pneumatic
Options
battery-powered, secure, 90°-pivoting
Carrying capacity

Max.: 600 kg
(1,323 lb)

Min.: 300 kg
(661 lb)

Number of cups

3 unit

Overall length

Max.: 1,680 mm
(66.14 in)

Min.: 1,680 mm
(66.14 in)

Total width

Max.: 430 mm
(16.93 in)

Min.: 430 mm
(16.93 in)

Weight

Max.: 112 kg
(246.92 lb)

Min.: 72 kg
(158.73 lb)

Description

The Aardwolf AVLP3-600 is a pneumatic vacuum lifter designed for lifting, tilting and positioning marble, granite and natural stone slabs with smooth or rough surfaces. Ideal for stone fabrication workshops, industrial material handling and construction applications.
Powered by compressed air, this industrial vacuum lifting device features three vacuum pads and a pneumatic tilting system that allows slabs to be moved from horizontal to vertical positions through 90°.

Features
  • Pneumatic vertical-horizontal tilting from 0 to 90° via a pneumatic piston.
  • Vacuum tank ensures safe pickup in case of sudden pump power loss.
  • Rechargeable 12V Li‑on battery powers audio and visual alarms.
  • Slider valve with ON/OFF positions for attaching and releasing material from vacuum pads.


Specifications
Number of pads: 3
Pad sizes (metric): 500×300 mm (2 outer pads); 400×200 mm (1 central pad)
Pad sizes (imperial): 19.7"×11.8"; 15.7"×7.9"
Working load limit: Vertical 300 kg; Horizontal 600 kg (661 lb; 1312 lb)
Net weight: 72 kg (159 lb)
Gross weight: 112 kg (247 lb)
Packaging dimensions: L1680 × W430 × H960 mm (66" × 17" × 37.8")

Battery information for the alarm system
Power supply: 3.7 V LiPo battery
Battery capacity: 2000 mAh × 1
Standby time: 720 hours
Charging cycle: 1000 cycles
Charging time: 2 hours
Non-stop working time: 7 hours

Compressed air requirement
Air consumption: 180 L/min
Supply air pressure: 5 bars (72 psi)

Technical specifications
  • Product code: AVLP3-600
  • Brand: Aardwolf
  • Number of pads: 3
  • Pad sizes: 500×300 mm (2 outer); 400×200 mm (1 central)
  • Working load limit: 300 kg vertical / 600 kg horizontal
  • Net weight: 72 kg; Gross weight: 112 kg
  • Packaging dimensions: L1680 × W430 × H960 mm
  • Tilting: Pneumatic vertical-horizontal tilt 0–90° via pneumatic piston
  • Power source: Compressed air (supply pressure 5 bars / 72 psi)
  • Vacuum safety: Vacuum tank maintains grip in case of pump power loss
  • Alarm system: Rechargeable 12V Li‑on battery for audio and visual alarms
  • Battery (alarm) specs: 3.7 V LiPo, 2000 mAh, ~720 h standby, 2 h charging, ~7 h continuous operation
  • Air consumption: 180 L/min
  • Operation control: Slider valve with ON/OFF for attaching/releasing material
