4-point vacuum lifter AVLP4-1000
90°-pivotingload rotatingpivoting

4-point vacuum lifter - AVLP4-1000 - AARDWOLF INDUSTRIES LLC - 90°-pivoting / load rotating / pivoting
4-point vacuum lifter - AVLP4-1000 - AARDWOLF INDUSTRIES LLC - 90°-pivoting / load rotating / pivoting
4-point vacuum lifter - AVLP4-1000 - AARDWOLF INDUSTRIES LLC - 90°-pivoting / load rotating / pivoting - image - 2
4-point vacuum lifter - AVLP4-1000 - AARDWOLF INDUSTRIES LLC - 90°-pivoting / load rotating / pivoting - image - 3
4-point vacuum lifter - AVLP4-1000 - AARDWOLF INDUSTRIES LLC - 90°-pivoting / load rotating / pivoting - image - 4
Add to favorites
Compare this product

Characteristics

Model
4-point
Options
90°-pivoting, load rotating, pivoting, secure, battery-powered
Type
horizontal, vertical
Product applications
for stone slabs, for marble, for slabs
Power
pneumatic
Carrying capacity

Max.: 1,000 kg
(2,205 lb)

Min.: 500 kg
(1,102 lb)

Number of cups

4 unit

Overall length

Max.: 1,680 mm
(66.14 in)

Min.: 1,680 mm
(66.14 in)

Total width

Max.: 430 mm
(16.93 in)

Min.: 430 mm
(16.93 in)

Weight

Max.: 94 kg
(207.23 lb)

Min.: 94 kg
(207.23 lb)

Description

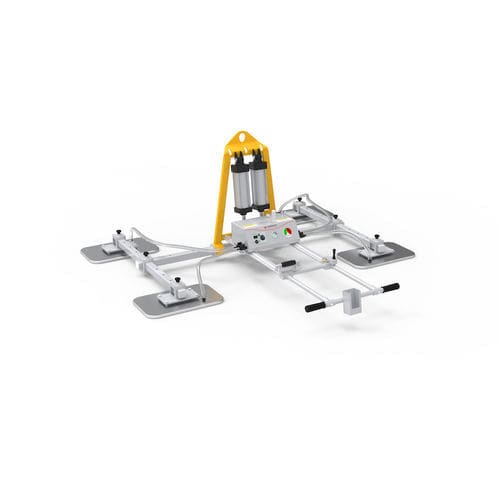

The Aardwolf AVLP4-1000 is a heavy-duty pneumatic vacuum lifter for stone slabs, designed for safe and efficient handling of smooth and rough granite and marble surfaces.

Equipped with four 500 × 300 mm vacuum pads, the AVLP4-1000 provides a working load limit of 500 kg for vertical lifting and 1,000 kg for horizontal lifting. Its pneumatic 90° tilting system allows stone slabs to be moved between horizontal and vertical positions for lifting, installation and precise placement.

Powered by compressed air, the vacuum lifter requires no electrical power for its main vacuum operation. An ergonomic control system and ON/OFF slide valve provide convenient vacuum attachment and material release.

For enhanced lifting safety, the AVLP4-1000 incorporates a built-in vacuum tank that helps maintain suction during an interruption in the air supply. An independent audio/visual monitoring and alarm system continuously monitors vacuum conditions and warns the operator if vacuum pressure becomes insufficient.

Designed for stone workshops, fabrication facilities, construction sites and installation work, the AVLP4-1000 provides a versatile solution for lifting, tilting and positioning heavy stone slabs.

Key features
  • 90° material rotation/tilting for accurate panel flipping and placement
  • High vacuum performance to minimise slippage and surface damage
  • Ergonomic pneumatic controls to reduce operator fatigue; no electric power or lubrication required for the main system
  • Slide valve for simple vacuum application and release of materials
  • Audio/visual safety system with continuous monitoring and alarms
  • Built-in vacuum tank for temporary holding during power or air supply interruptions

Technical specifications (summary)
Metric / Imperial
Number of pads: 4 / -
Pad size: 500 x 300 mm / 19.7" x 11.8"
Working load limit: Vertical 500 kg; Horizontal 1000 kg / 1102 lb; 2204 lb
Net weight: 94 kg / 207 lb
Gross weight: 134 kg / 295 lb
Packaging dimensions: L 1680 x W 430 x H 960 mm / 66.1" x 16.9" x 37.8"

Battery / alarm system
Power supply: 3.7 V LiPo battery
Battery capacity: 2000 mAh x 1
Standby time: 720 hours
Charging cycles: 1000
Charging time: 2 hours (adapter DC 5V-1A)
Non-stop alarm working time: ~7 hours
Warranty (battery system): 6 months

Compressed air requirement
Air consumption: 180 liters/min
Supply air pressure: 5 bars (72 psi)

Why choose the AVLP4-1000
  • Versatile for smooth and rough stone surfaces and compatible with multiple pad sizes
  • Enhanced safety with vacuum tank backup and audio/visual alarms
  • Designed and manufactured by Aardwolf for industrial lifting tasks
  • Backed by a 12-month product warranty

Specifications / technical data
  • Brand: Aardwolf
  • Model / product code: AVLP4-1000
  • Application: lifting and 90° tilting of marble and granite slabs (smooth and rough surfaces)
  • Tilting/rotation: 90° pneumatic tilting
  • Number of vacuum pads: 4
  • Pad dimensions: 500 x 300 mm
  • Working load limit (WLL): Vertical 500 kg; Horizontal 1000 kg
  • Net weight: 94 kg
  • Gross weight: 134 kg
  • Packaging dimensions: L 1680 x W 430 x H 960 mm
  • Air consumption: 180 L/min
  • Supply air pressure: 5 bars (72 psi)
  • Alarm battery: 3.7 V LiPo, 2000 mAh
  • Alarm battery charging time: 2 hours; continuous alarm time ~7 hours
  • Safety: audio/visual alarm system and built-in vacuum tank for interruption protection
  • Warranty: 12 months (product)
