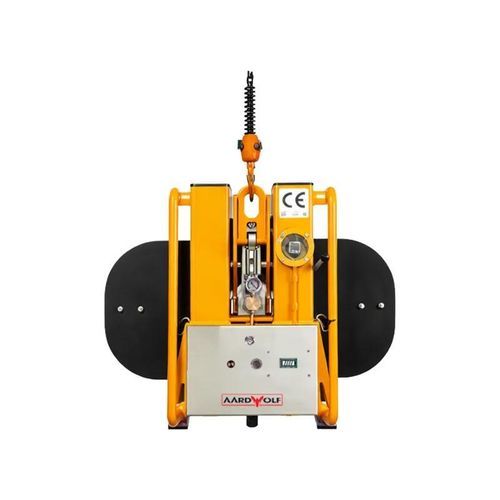

Glass plate vacuum lifting device VGG500

DC powerautomaticbattery-powered

Overview
The Vacuum GlassGrip VGG500 is a compact, battery-powered vacuum glass lifter engineered for lifting, rotating and precise positioning of single glass panels in construction, architectural glazing, insulated glass units and façade systems. Equipped with a DC vacuum pump and DC 12V battery, the unit operates independently of external air or mains power. It allows 90° tilting and 360° rotation and provides a vacuum pressure display and battery indicator for safe on-site monitoring. An automatic vacuum compensation system maintains stable suction during handling. A replaceable sealing ring and optional transport trolley improve maintenance and logistics.

Features

• Compact design for ease of handling on-site
• Lifting capacity: 500 kg
• 90° tilt and 360° continuous rotation
• Fully self-contained power: DC vacuum pump with DC 12V battery
• Vacuum pressure display and battery level indicator for monitoring
• Automatic vacuum pressure compensation for stable suction
• Replaceable sealing ring for quick maintenance

Applications

• Installation of glass doors and interior glass partitions
• Handling of small to medium-sized glass panels and IGUs
• Façade and architectural glazing works
• Glass workshops and mobile lifting requirements on-site

Technical specifications

• Model / Product Code: VGG500
• Load capacity: 500 kg
• Suction pad(s): 1 pc
• Tilt & rotation type: Manual
• Tilt angle: 90°
• Rotation angle: 360°
• Suction & release control: Manual slide valve
• Battery: DC 12V
• Net weight / Gross weight: 60 kg
• Packing size: 0.5 m³
