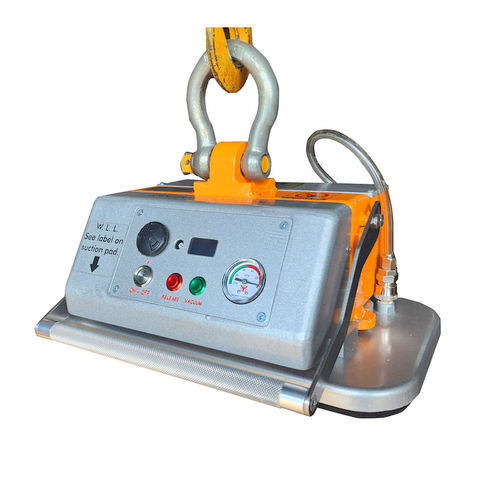

Slab vacuum lifting device ABHVL-500

for flat partsfor concrete slabsfor stone slabs

General
The Aardwolf Battery Handy Vacuum Lifter (ABHVL-500) is a compact, battery-powered vacuum lifter designed for efficient handling of concrete blocks, stone slabs and similar heavy materials on smooth or rough surfaces. The unit supports multiple pad sizes and integrates easily with a crane or hoist hook. The clip-in, quick-swap battery with energy-saving management enables extended site operation and fast replacement to minimise downtime.

Key features

• Work Load Limit: up to 500 kg with appropriate pad size.
• Integrated battery vacuum system: high-performance pump with no external pneumatic supply required.
• Versatile pads: four pad sizes to match specific W.L.L. requirements.
• Easy pad changes: rapid assembly and tool-free switching between pads.
• One-press operation: single-button lift and release for smooth vertical handling.
• Visual monitor and alarm system: real-time vacuum feedback for safe operation.
• Battery backup & quick-swap clip-in battery: energy-saving system for extended use and fast replacement.

Specifications
Pad sizes and W.L.L. (Metric / Imperial):
500 x 300 mm : 500 kg / 19.7" x 11.8" : 1102 lbs
420 x 220 mm : 220 kg / 16.5" x 8.66" : 485 lbs
500 x 150 mm : 164 kg / 19.7" x 5.9" : 362 lbs
500 x 125 mm : 126 kg / 19.7" x 4.9" : 278 lbs

Packing dimensions (Metric / Imperial):
L 590 x W 470 x H 340 mm / 23.2" x 18.5" x 13.3"

Weight:
Net weight: 18 kg / 39.6 lbs
Gross weight: 34 kg / 74.9 lbs

Battery information
Battery capacity: 12V – 6Ah
Charging time: 2.5 hours (full charge)
Battery lifespan: 800–1000 charge cycles
Operating time: up to 3 hours continuous use

Why choose the Aardwolf Handy Vacuum Lifter?

• Maintains safe vacuum levels with visual monitor and alarm.
• Adaptable to concrete, stone and similar heavy materials on varied surfaces.
• Minimises downtime with clip-in quick-swap battery and energy-saving management.
• Designed for integration with crane or hoist hook for site flexibility.

Technical specifications

• Model: ABHVL-500 (Aardwolf Battery Handy Vacuum Lifter)
• Maximum load (with appropriate pad): 500 kg
• Pad options (metric): 500 x 300 mm, 420 x 220 mm, 500 x 150 mm, 500 x 125 mm
• Integrated pump: battery-powered (no external pneumatic supply required)
• Battery: 12V – 6Ah, clip-in, quick-swap
• Battery charge time: 2.5 hours; operating time up to 3 hours continuous
• Battery lifespan: 800–1000 cycles
• Net weight: 18 kg; Gross weight: 34 kg
• Packing dimensions (L x W x H): 590 x 470 x 340 mm
• One-press lift/release operation, visual monitor and alarm system
• Suitable for integration with crane or hoist hook
