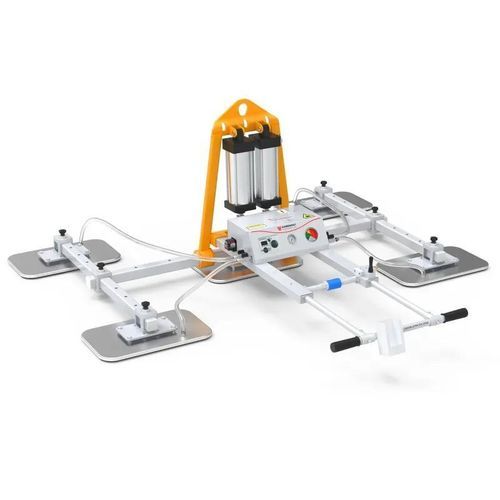

90°-pivoting vacuum lifter AVLP5-P-1000-RP
securebattery-poweredaluminum

90°-pivoting vacuum lifter - AVLP5-P-1000-RP - AARDWOLF INDUSTRIES LLC - secure / battery-powered / aluminum
90°-pivoting vacuum lifter - AVLP5-P-1000-RP - AARDWOLF INDUSTRIES LLC - secure / battery-powered / aluminum
90°-pivoting vacuum lifter - AVLP5-P-1000-RP - AARDWOLF INDUSTRIES LLC - secure / battery-powered / aluminum - image - 2
90°-pivoting vacuum lifter - AVLP5-P-1000-RP - AARDWOLF INDUSTRIES LLC - secure / battery-powered / aluminum - image - 3
90°-pivoting vacuum lifter - AVLP5-P-1000-RP - AARDWOLF INDUSTRIES LLC - secure / battery-powered / aluminum - image - 4
Add to favorites
Compare this product

Characteristics

Options
90°-pivoting, secure, battery-powered, aluminum, rotary
Type
vertical, fixed, adjustable, horizontal
Product applications
for marble, for stone slabs
Power
pneumatic
Carrying capacity

Max.: 1,000 kg
(2,205 lb)

Min.: 500 kg
(1,102 lb)

Number of cups

5 unit

Overall length

Max.: 2.07 m
(6'09" )

Min.: 2.07 m
(6'09" )

Total width

Max.: 430 mm
(16.93 in)

Min.: 430 mm
(16.93 in)

Weight

Max.: 114 kg
(251.33 lb)

Min.: 114 kg
(251.33 lb)

Description

The Aardwolf AVLP5-P-1000-RP is a heavy-duty pneumatic vacuum lifter designed for safe and efficient handling of marble, granite and other suitable non-porous materials in stone workshops, manufacturing facilities and construction applications.
With a working load limit of up to 1,000 kg horizontally and 500 kg vertically, the vacuum lifter features five 500 × 300 mm vacuum pads for reliable load handling. Its pneumatic tilting system enables controlled 0–90° movement from horizontal to vertical, simplifying slab positioning and installation.
The adjustable pad configuration combines four rotating pads with one fixed pad, allowing the lifter to adapt to different material sizes and shapes.
Two operating modes improve both safety and efficiency. Audio Alarm Mode activates a warning when vacuum pressure drops below 64 kPa, while Energy Saver Mode automatically controls the vacuum pump according to vacuum pressure to reduce compressed-air and energy consumption.
A slide valve provides quick ON/OFF control, while the integrated safety monitoring system provides continuous vacuum status monitoring.

Features
  • Pneumatic tilting: 0°–90° vertical-horizontal movement for flexible positioning.
  • Dual operation modes:
    • Audio Alarm Mode: Buzzer activates when vacuum pressure falls below 64 kPa.
    • Energy Saver Mode: Pump reactivates automatically when vacuum drops and switches off when target vacuum is reached to reduce air and energy use.
  • High vacuum performance: Secure grip to minimise slippage and material damage.
  • Adjustable handles: Extend from 76.2 mm (3") to 106.68 mm (4.2") for operator comfort.
  • Durable construction: Aluminium handle protects air and vacuum lines.
  • Slide valve: ON/OFF mechanism for quick material release.
  • Safety system: Real-time monitoring and alerts powered by a rechargeable battery for continuous operation.
  • Adjustable pad configuration: Four rotating pads and one fixed pad to adapt to various shapes and sizes.


Specifications
  • Product code: AVLP5-P-1000-RP
  • Number of pads: 5
  • Pad size: 500 × 300 mm
  • Working load limit – Vertical: 500 kg
  • Working load limit – Horizontal: 1000 kg
  • Net weight: 114 kg
  • Gross weight: 169 kg
  • Packaging dimensions: L 2070 × W 430 × H 960 mm


Battery information – Alarm system
  • Battery code: GBA 12V 2.0Ah Bosch
  • Battery type: Lithium‑ION
  • Voltage: 12V
  • Capacity: 2.0Ah
  • Quantity: 1
  • Continuous operation time (Energy Saver Mode): 2 hours
  • Working time (Energy Saver Mode): 6 hours
  • Continuous operation time (Audio Alarm only): 120 hours
  • Working time (Audio Alarm only): 360 hours


Battery charger
  • Charger code: GAL 12V-40 Bosch
  • Input supply voltage: 220–240 VAC
  • Output voltage: 12V
  • Output current: 4.0 Ah
  • Quantity: 1
  • Full charge time: 0.5 hour
  • Weight: 460 g


Compressed air requirement
  • Air consumption: 180 litres/min
  • Supply air pressure: 5 bars (72 psi)


Technical specifications
  • Model: AVLP5-P-1000-RP
  • Brand: Aardwolf
  • Number of pads: 5
  • Pad size: 500 × 300 mm
  • WLL (vertical): 500 kg
  • WLL (horizontal): 1000 kg
  • Net weight: 114 kg
  • Gross weight: 169 kg
  • Packaging: L 2070 × W 430 × H 960 mm
  • Battery: GBA 12V 2.0Ah Bosch, Lithium‑ION, 12V, 2.0Ah
  • Air consumption: 180 litres/min; supply pressure: 5 bars (72 psi)
  • Adjustable handles: extend 76.2 mm to 106.68 mm
  • Pad configuration: four rotating pads and one fixed pad
