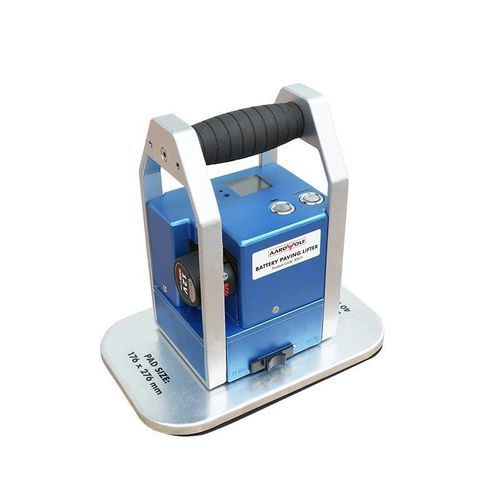

Flat part vacuum lifting device BPL01

for concrete slabsverticaladjustable

General
The Battery Paving Lifter BPL01 is a compact vacuum lifter for installing paving blocks, tiles and small concrete slabs. It includes a dedicated compact pad for narrow blocks and small-format tiles to improve handling in confined or detailed areas. The lightweight aluminum frame enables comfortable operation close to the ground and in upright positions. Dual release buttons on the body and handle provide safe control in different working postures. The quick-fit pad system supports fast, tool-free pad changes and interchangeable pad sizes. The 12V Li-ion battery is removable and suited to mobile jobsite use.

Key Features

• Compatible with small-format materials: Compact pad for narrow blocks and small tiles, enabling precise handling in tight areas.
• Dual release system: Body-mounted release for ground-level use and handle-mounted release for upright operation.
• Lightweight aluminum frame: Corrosion-resistant and easy to maneuver.
• Quick-fit pads: Tool-free sliding mechanism for rapid pad changes.
• Interchangeable pads: Supports two pad sizes for different material dimensions.
• 12V Li-ion battery: Compact, replaceable battery suitable for on-site work.
• Easy maintenance: Simple layout for cleaning and servicing.

Specifications
Battery: 12V – 2.0Ah Li‑ion
Working Load Limit: 25 kg (small pad); 40 kg (large pad)
Pad Size – Small: 86 × 186 mm (3 3/8 × 7 3/8 in)
Pad Size – Large: 176 × 276 mm (6 7/8 × 10 7/8 in)

Technical details

• Battery: 12V – 2.0Ah Li‑ion
• Working Load Limit: 25 kg (small pad); 40 kg (large pad)
• Pad Size - Small: 86 × 186 mm (3 3/8 × 7 3/8 in)
• Pad Size - Large: 176 × 276 mm (6 7/8 × 10 7/8 in)
• Lightweight aluminum frame for close-to-ground and upright operation
• Dual release buttons (body and handle)
• Quick-fit, interchangeable pad system (two pad sizes)
