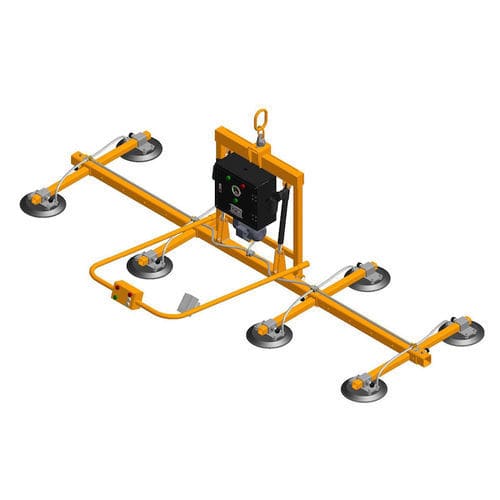

Cross vacuum lifting device AEVGLP8-800

glass plateadjustablevertical

General
The AEVGLP8-1000 electric vacuum glass lifter is engineered for lifting and transporting long glass panels on construction and industrial sites. It features a welded steel frame, adjustable crossbar and stringer beams, and a 0–90° tilt range controlled from an electric cabinet and integrated remote control.

Features

• Handling and transport of long glass panels.
• Electric cabinet control with integrated remote control.
• Audio-visual alarm for vacuum and system alerts.
• Vertical-horizontal tilt 0–90° with linear actuator.
• Adjustable vacuum pads to match panel sizes.
• Automatic vacuum pump activation in case of vacuum loss.
• Attach and release via ON/OFF slide valve.
• Battery-backed alarm system.

Specifications
Model: AEVGLP8-1000
Number of pads: 8
Linear actuator: 90°
Pad diameter: 300 mm / 11.8"
Glass handling range (max): 3600 x 1800 mm / 141.7" x 71"
Glass handling range (min): 2400 x 800 mm / 94.5" x 31.5"
Adjustable crossbar travel (both sides): 400 mm / 15.7"
Adjustable stringer beam travel (both sides): 250 mm / 9.8"
Working load limit: Vertical 800 kg; Horizontal 1000 kg
Net weight: 184 kg (406 lb)
Gross weight: 293 kg (646 lb)
Packaging dimensions: 3520 x 485 x 1270 mm (128" x 19" x 50")

Battery information for the alarm system
Power supply: 3.7V LiPo battery
Battery capacity: 2000 mAh x 1
Adapter: DC 5V-1A
Standby time: 720 hours
Charging cycles: 1000 cycles
Charging time: 2 hours
Non-stop working time: 7 hours
Warranty: 6 months (alarm battery system)

Motor Information
Motor supply: AC 380V, 3-phase, 50/60 Hz
Vacuum flow rate: 4.1 / 4.7 m3/hour

Technical specifications

• Product code: AEVGLP8-1000
• Main application: lifting and handling of long glass panels
• Tilt system: 0–90° via linear actuator
• Control: electric cabinet with integrated remote
• Vacuum pads: 8 units, Ø 300 mm
• Capacity: vertical 800 kg, horizontal 1000 kg
• Frame: welded steel structure
• Motor: AC 380V 3~ 50/60Hz; vacuum flow 4.1/4.7 m3/h
• Alarm battery: 3.7V LiPo 2000 mAh, charge 2 h, runtime ~7 h
