4-point vacuum lifter AVLP4-500L
90°-pivotingpivotingbattery-powered

4-point vacuum lifter - AVLP4-500L - AARDWOLF INDUSTRIES LLC - 90°-pivoting / pivoting / battery-powered
4-point vacuum lifter - AVLP4-500L - AARDWOLF INDUSTRIES LLC - 90°-pivoting / pivoting / battery-powered
4-point vacuum lifter - AVLP4-500L - AARDWOLF INDUSTRIES LLC - 90°-pivoting / pivoting / battery-powered - image - 2
4-point vacuum lifter - AVLP4-500L - AARDWOLF INDUSTRIES LLC - 90°-pivoting / pivoting / battery-powered - image - 3
4-point vacuum lifter - AVLP4-500L - AARDWOLF INDUSTRIES LLC - 90°-pivoting / pivoting / battery-powered - image - 4
4-point vacuum lifter - AVLP4-500L - AARDWOLF INDUSTRIES LLC - 90°-pivoting / pivoting / battery-powered - image - 5
4-point vacuum lifter - AVLP4-500L - AARDWOLF INDUSTRIES LLC - 90°-pivoting / pivoting / battery-powered - image - 6
4-point vacuum lifter - AVLP4-500L - AARDWOLF INDUSTRIES LLC - 90°-pivoting / pivoting / battery-powered - image - 7
Add to favorites
Compare this product

Characteristics

Model
4-point
Options
90°-pivoting, pivoting, battery-powered
Type
vertical, horizontal
Product applications
for stone slabs, for slabs
Power
pneumatic
Carrying capacity

Max.: 500 kg
(1,102 lb)

Min.: 250 kg
(551 lb)

Number of cups

4 unit

Overall length

Max.: 2,580 mm
(101.57 in)

Min.: 2,580 mm
(101.57 in)

Total width

Max.: 430 mm
(16.93 in)

Min.: 430 mm
(16.93 in)

Headroom

Max.: 960 mm
(37.8 in)

Min.: 960 mm
(37.8 in)

Weight

Max.: 150 kg
(330.69 lb)

Min.: 92 kg
(202.83 lb)

Description

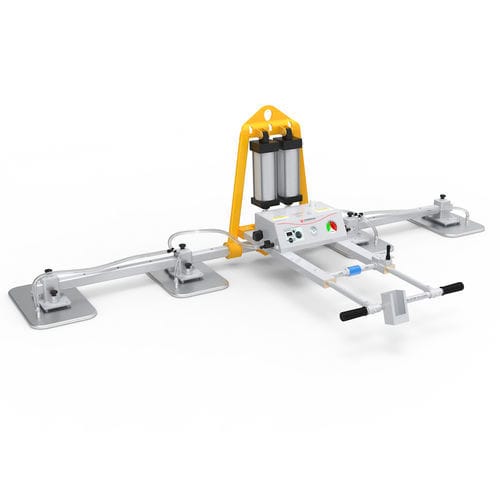

The Aardwolf AVLP4-500L is a pneumatic vacuum lifter designed for lifting, tilting and positioning marble and granite slabs with smooth or rough surfaces. With a working load limit of 500 kg horizontally and 250 kg vertically, this industrial stone slab lifting equipment is suitable for stone fabrication workshops, countertop production and natural stone processing facilities.

Powered by compressed air, the vacuum lifting system features four suction pads measuring 500 × 300 mm each. Its pneumatic tilting mechanism enables controlled movement between horizontal and vertical positions through a 0–90° range. An integrated vacuum reserve tank helps maintain suction in the event of an interruption to the vacuum pump's power supply. An audible and visual alarm system powered by a rechargeable 12V lithium-ion battery provides operating warnings. The ON/OFF slide valve allows controlled attachment and release of slabs.

Technical specifications: horizontal working load limit 500 kg; vertical working load limit 250 kg; 4 suction pads; pad size 500 × 300 mm; pneumatic tilting 0–90°; compressed air pressure 5 bar; air consumption 180 L/min; net weight 92 kg.

The AVLP4-500L provides a practical vacuum lifting solution for industrial marble and granite slab handling.

Features
  • Pneumatic vertical-horizontal tilting 0–90°.
  • Vacuum tank for safe retention in case of sudden power loss to the vacuum pump.
  • Audio and visual alarm powered by rechargeable 12V Li‑Ion battery (Bosch GBA 12V 2.0Ah).
  • Slide valve with ON/OFF position for secure attachment and controlled release.

Specifications
Metric / Imperial
Number of pads: 4 / -
Pad size: 500 x 300 mm / 19.7" x 11.8"
Working load limit: Vertical: 250 kg; Horizontal: 500 kg (551 lb; 1102 lb)
Net weight: 92 kg / 203 lb
Gross weight: 150 kg / 331 lb
Packaging dimensions: L 2580 x W 430 x H 960 mm / 101.5" x 16.9" x 37.7"

Battery information for the device
Code battery: GBA 12V 2.0Ah Bosch
Type battery: Lithium‑ION
Voltage: 12V
Capacity: 2.0 Ah
Quantity: 1
Continuous operation time (mode: pressure saving): 2 hours
Working time (mode: pressure saving): 6 hours
Continuous operation time (mode: audio alarm only): 120 hours
Working time (mode: audio alarm only): 360 hours

Battery charger
Code charger: GAL 12V-40 Bosch
Input supply voltage: 220–240 VAC
Output voltage: 12V
Output current: 4.0 A
Quantity: 1
Full charge time: 0.5 hour
Weight: 460 g

Compressed air requirement
Air consumption: 180 liters/minute
Supply air pressure: 5 bars (72 psi)

Technical specifications
  • Model / product code: AVLP4-500L
  • Brand: Aardwolf
  • Series: AVLP4 series
  • Number of pads: 4
  • Pad size: 500 x 300 mm (19.7" x 11.8")
  • Working load limit: Vertical 250 kg; Horizontal 500 kg (551 lb; 1102 lb)
  • Net weight: 92 kg (203 lb)
  • Gross weight: 150 kg (331 lb)
  • Packaging dimensions: L 2580 x W 430 x H 960 mm (101.5" x 16.9" x 37.7")
  • Tilt: Pneumatic vertical-horizontal 0–90°
  • Vacuum tank for safety in case of pump power loss
  • Slide valve ON/OFF for attachment and release
  • Alarm: audio/visual powered by rechargeable 12V Li‑Ion battery (GBA 12V 2.0Ah Bosch)
  • Battery charger: GAL 12V-40 Bosch (Input 220–240 VAC, Output 12V 4.0 A, full charge 0.5 h)
  • Compressed air: 180 L/min at 5 bars (72 psi)
  • Power source for lifting/tilting: compressed air
