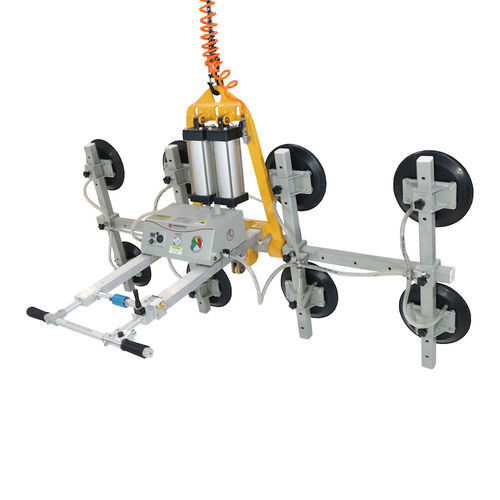

Flat part vacuum lifting device AVGLP8-800

glass platefor plateshorizontal

General
This AVGLP8-800 vacuum lifter is designed for handling large glass and porcelain sheets. It provides pneumatic 0–90° tilting, automatic vacuum backup and an independent acoustic/visual alarm for safe lifting and positioning in industrial glazing and facade operations.

Features

• Pneumatic vertical-horizontal tilting from 0 to 90°.
• Automatic vacuum pumping / vacuum reservoir for safe compensation in case of pump interruption.
• Independent acoustic and visual alarm powered by a rechargeable battery.
• Attach and release material with an ON/OFF slide valve and integrated control handle.

Specifications
Model: AVGLP8-800
Number of pads: 8
Pad diameter (seal to seal): 300 mm (11.8")
Working load limit: Vertical 400 kg; Horizontal 800 kg
Net weight: 108 kg (238 lb)
Gross weight: 135 kg (298 lb)
Packaging dimensions: L 2050 x W 430 x H 960 mm (80.7" x 17" x 37.8")

Battery information
Battery code: GBA 12V 2.0Ah Bosch
Battery type: Lithium‑ION
Voltage: 12 V
Capacity: 2.0 Ah
Quantity: 1
Continuous operation time (pressure‑saving mode): 2 hours
Working time (pressure‑saving mode): 6 hours
Continuous operation time (audio alarm only): 120 hours
Working time (audio alarm only): 360 hours

Battery charger
Charger code: GAL 12V-40 Bosch
Input supply voltage: 220–240 VAC
Output voltage: 12 V
Output current: 4.0 A
Quantity: 1
Full charge time: 0.5 hour
Charger weight: 460 g

Compressed air requirement
Air consumption: 180 L/min
Supply air pressure: 5 bars (72 psi)

Technical characteristics

• Application: lifting and tilting large glass and porcelain sheets.
• Tilt mechanism: pneumatic cylinders 0–90° (vertical ↔ horizontal).
• Safety: vacuum reservoir/automatic pumping for backup in case of vacuum loss.
• Alarm: independent acoustic and visual alarm with rechargeable battery.
• Controls: integrated handle with attach/release slide valve.
• Suction pads: 8 units, Ø 300 mm (seal to seal).
• Working load limits: 400 kg vertical / 800 kg horizontal.
• Battery: GBA 12V 2.0Ah Bosch (Li‑ION); Charger: GAL 12V‑40 Bosch.
• Compressed air: 180 L/min at 5 bar.
