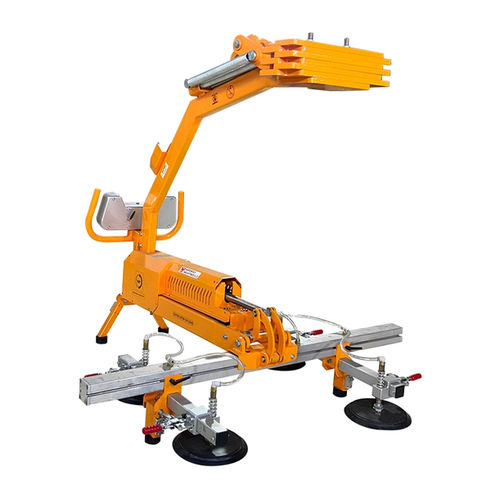

Flat part vacuum lifting device ARV-180E

for platesfor flat loadselectric

General
The Aardwolf Rotation Vacuum Lifter (ARV-180E) is a battery-powered vacuum lifter designed to integrate directly with cranes and hoists. It has a working load limit (WLL) of 160 kg and provides 180° rotation, with lifting, lowering and rotation functions controlled via an integrated steering-wheel style control panel. The ARV-180E features a high-performance vacuum pump for reliable suction on a wide range of flat materials, a self-balancing system, a robust electric cylinder, a cooling fan for high-duty cycles and a 24V quick-swap battery to enable continuous operation. Measuring scales and locking handles for vacuum pad adjustment, an integrated support stand and an ergonomic handle improve precision, stability and ease of use in workshops and job sites.

Features

• High-performance vacuum pump - Provides strong, stable suction for reliable load handling.
• Self-balancing system - Keeps loads stable and easier to position.
• Electric cylinder - Ensures smooth and precise lifting and lowering.
• Linear rotation control - Allows adjustment of rotation speed and angle as required.
• Safety monitoring - Audio-visual alerts for vacuum pressure and battery status.
• 24V quick-swap battery - Enables battery replacement within seconds for uninterrupted operation.
• Adjustable vacuum pads - Integrated measuring scale and locking handles for quick pad adjustment.
• Integrated support stand - Stability for storage and maintenance.
• Ergonomic handle - Designed for comfortable operation over extended periods.
• Wireless crane control - Compact control without separate wired remotes.

Notes

• Compatible with Aardwolf cranes & hoists (optional).
• Dual-position fabrication table available as an optional accessory.

Technical specifications

• Model: ARV-180E
• Working Load Limit (WLL): 160 kg
• Rotation: 180°, linear control
• Battery: 24V quick-swap clip-in
• Net weight: 131 kg
• Lifting mechanism: Electric cylinder
