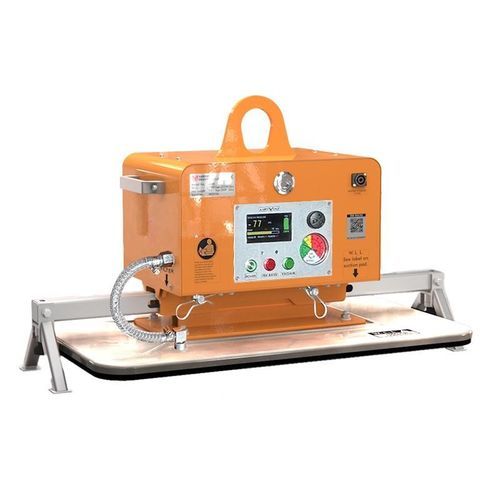

Block lifter AVBL1000

General The Aardwolf Vacuum Block Lifter AVBL1000 is a battery-powered vacuum lifting device for handling heavy non-porous blocks and slabs such as marble, granite and concrete. Work load limit: 1000 kg. Compatible with cranes, hoists, load hooks and forklift trucks for on-site use without external power.

Features

• Work load limit: 1000 kg (2204 lbs).
• Dual vacuum pumps: Independent pumps with automatic restart on pressure loss.
• Interchangeable pads: Standard pad size 800 × 500 mm; quick-change system.
• Safety alerts: Visual and audio indicators and vacuum gauge.
• Controls: One-button vacuum engage and release; manual vacuum valve for emergency release.
• Support cradle: Integrated support leg for storage and pad protection.

Specifications Model: AVBL1000
Pad sizes: 800 × 500 mm / 31 1/2” × 19 3/4”
Working load limit: 1000 kg / 2204 lbs
Net weight: 95 kg / 209 lbs
Gross weight: 116 kg / 256 lbs
Packaging dimensions: 870 × 570 × 635 mm / 34 1/4” × 22 1/2” × 25”

Battery information Battery capacity: 12V-24Ah
Standby time: 720 hours
Charging cycles: 1000
Charging time: 8 hours
Adapter: DC 12V-3A
Continuous working time: 5 hours

Motor information Vacuum flow rate: 32.5 L/min
Motor current draw: 12V-4A
Number of pumps: 2

Safety and operation

• Automatic pressure switch restarts pumps on vacuum loss.
• Battery charge indicator for on-site monitoring.
• Recommended pre-use checks: surface condition, correct pad selection, verify WLL and lifting attachments.

Technical specifications

• Brand: Aardwolf
• Model: AVBL1000
• WLL: 1000 kg
• Pads: 800 × 500 mm
• Battery: 12V-24Ah, charger 12V-3A
• Vacuum flow: 32.5 L/min; motor 12V-4A
