Stone slab vacuum lifting device APSL

DC powersecureforklift mounted

Overview
The Aardwolf Paving Stone Lifter (APSL) is designed for safe and efficient lifting of paving stones and similar materials. It features an automatic vacuum pressure system with real-time visual and audio feedback to ensure correct suction. Dual control options are available: handle-mounted for direct operation or body-mounted for flexible access. The unit supports manual handling, forklift attachment or crane-hook lifting. Includes 24V-8Ah battery and charger.

Key Features

• Automatic vacuum system: Real-time visual and audio feedback for secure operation.
• Dual controls: Handle-mounted and body-mounted control options.
• Quick-fit pads: Tool-free pad change for different materials.
• Disassemblable handles: Easy to transfer and adapt for various lifting needs.
• Versatile operation: Manual, forklift or crane-hook lifting supported.
• Standard capacity: Up to 110 kg (capacity varies by pad size).
• Portable power: 24V-8Ah battery providing approximately 4 hours continuous runtime.

Specifications (Metric / Imperial)
Pad sizes with W.L.L:
276 x 176 mm : 120 kg | 10 7/8" x 6 7/8" : 242.5 lbs
186 x 86 mm : 28 kg | 7 3/8" x 3 3/8" : 62 lbs
Net weight: 16 kg | 35.3 lbs
Gross weight: 36 kg | 79.4 lbs
Packaging dimensions: 720 x 420 x 770 mm | 28 3/8" x 16 1/2" x 30 1/4"

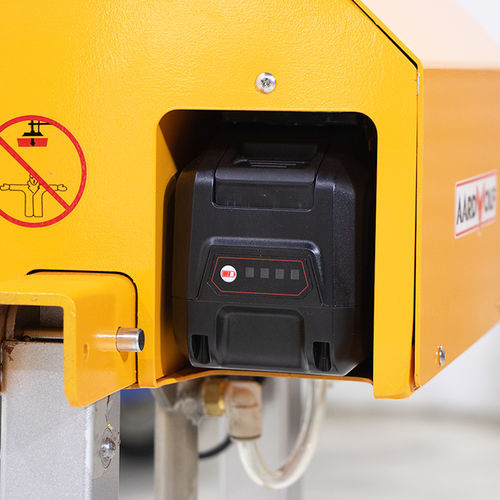

Battery
Battery capacity: 24VDC - 8Ah
Non-stop working time: ~4 hours
Includes charger

Motor / Vacuum
Vacuum flow rate: 38 L/min
Motor: 24VDC - 2A

Technical specifications

• Model: APSL
• Brand: Aardwolf
• Main use: Lifting paving stones and similar materials
• Control options: Handle-mounted buttons or body-mounted controls
• Operation modes: Manual, forklift or crane-hook lifting
• Included accessories: 24V battery and charger
• Pad quick-fit system: Tool-free pad change
• Disassemblable handles for transfer and varied lifting needs
• Standard lift capacity: Up to 110 kg (varies by pad size)
• Net weight: 16 kg; Gross weight: 36 kg
• Packaging dimensions: 720 x 420 x 770 mm
• Vacuum flow rate: 38 L/min; Motor: 24VDC - 2A
