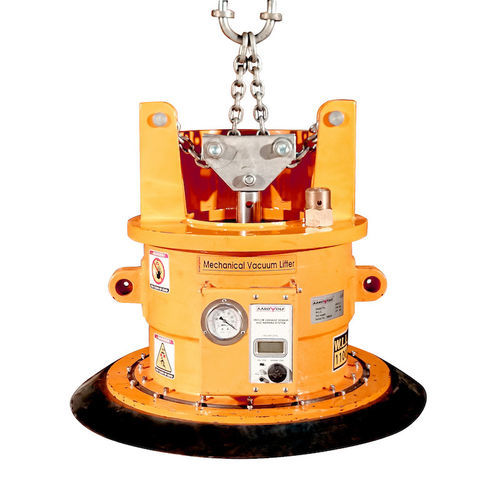

Stone slab vacuum lifting device AMMVL1000

aluminiumfor metal sheetsfor sheets

General
No external power source required. Ideal for horizontal handling of non-porous sheet and plate materials such as diamond-sawn or polished granite, engineered stone, all types of metals, plastics and fiberglass. Equipped with a telescopic front handle and an adjustable vacuum pad.

Features

• Self-powered, self-cycling mechanical vacuum operation.
• Simple operation and low maintenance.
• Suitable for a variety of sheet sizes.
• Safety interlock prevents release until the load is set down on the surface.
• Capable of 100% duty cycle for continuous 24 h/day operation.
• 9 V non-rechargeable battery powers the audible alarm.
• Vacuum gauge provides a visual warning of low vacuum.
• Telescopic front handle for ergonomic handling.

Specifications
Metric | Imperial
Number of pads: 1 | -
Pad diameter (seal to seal): 530 mm | 21"
Working load limit (WLL): 1000 kg | 2204 lb
Net weight: 55 kg | 121 lb
Gross weight: 67 kg | 148 lb
Packaging dimensions: L730 x W385 x H760 mm | 28.7" x 15.1" x 30"

Battery / Power
Power supply: 9 V non-rechargeable (powers audible alarm)
Warranty: 6 months

Note
For materials with rough surface texture (e.g. exfoliated granite, concrete, textured metals) consult electric or air-powered vacuum lifters with foam rubber pads.

Technical specifications

• Model: AMMVL1000
• Number of pads: 1
• Pad diameter (seal to seal): 530 mm (21")
• Working load limit (WLL): 1000 kg (2204 lb)
• Net weight: 55 kg (121 lb)
• Gross weight: 67 kg (148 lb)
• Packaging dimensions: 730 x 385 x 760 mm (28.7" x 15.1" x 30")
• Power for alarm: 9 V non-rechargeable battery
• Duty cycle: 100% (24 h/day)
• Warranty: 6 months
