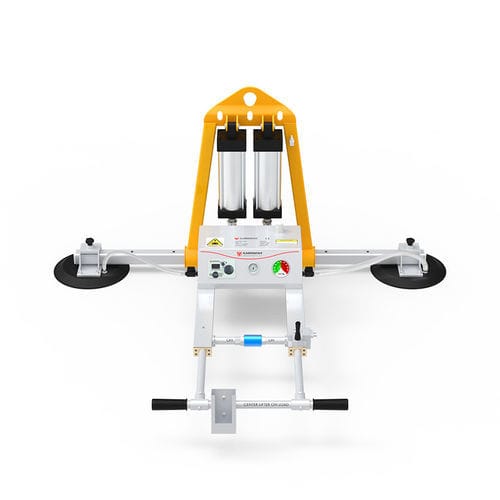

The Aardwolf AVGLP2-200 is a pneumatic vacuum glass lifter designed for lifting, tilting and positioning glass panels, including glass with rough surfaces. With a working load limit of 200 kg, this industrial glass lifting equipment is suitable for glass processing factories, glazing workshops and material handling applications.
The pneumatic tilting mechanism allows glass sheets to move between horizontal and vertical positions through a 0–90° range. Two 300 mm diameter suction pads provide vacuum gripping, while automatic vacuum pumping activates if vacuum loss occurs. An audible and visual warning system helps operators monitor lifting conditions. The ON/OFF slide valve enables convenient attachment and release of materials.
Technical specifications: 200 kg working load limit; 2 suction pads; 300 mm pad diameter; 0–90° pneumatic tilting; 5 bar compressed air supply; 180 L/min air consumption; 64 kg net weight. The warning system uses a rechargeable 3.7V LiPo battery.
The AVGLP2-200 provides a practical vacuum lifting solution for handling and positioning glass sheets in industrial environments.
Features- Pneumatic vertical-horizontal tilting 0°–90°
- Automatic vacuum pumping in case of vacuum loss
- Audio and visual warning system
- Attach/release control via ON/OFF slide valve
- Two suction pads, suitable for panel handling
Specifications- Model: AVGLP2-200
- Product type: Pneumatically powered vacuum glass lifter
- Number of pads: 2
- Pad diameter: 300 mm (11.8 in)
- Working load limit: 200 kg (441 lbs)
- Net weight: 64 kg (141 lbs)
- Packaging dimensions: 1480 x 430 x 960 mm (58.3 in x 16.9 in x 37.8 in)
Battery information for the alarm system- Power supply: 3.7V LiPo battery
- Battery capacity: 2000 mAh × 1
- Standby time: 720 hours
- Charging cycle: 1000 cycles
- Charging time: 2 hours
- Non-stop working time: 7 hours
Compressed air requirement- Air consumption: 180 liters/minute
- Supply air pressure: 5 bars (72 psi)
Technical characteristics- Suitable for handling glass panels, including rough surfaces
- Safety features: automatic vacuum pumping on vacuum loss; audio/visual alarm
- Operation: attach/release via ON/OFF slide valve
