- Cross vacuum lifting device
- AARDWOLF INDUSTRIES LLC

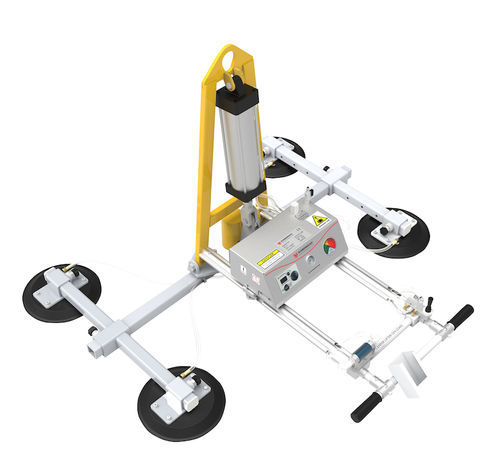

4-point vacuum lifting device AVGLP4-MR-250glass platehorizontaladjustable
Add to favorites
Compare this product
Characteristics
- Model
- 4-point
- Product applications
- glass plate
- Type
- horizontal, adjustable, vertical
- Power
- pneumatic
- Options
- battery-powered, pivoting, automatic, rotary, 4 lifting points fixed, 90°-pivoting, stainless steel, load rotating
- Carrying capacity
Min.: 250 kg
(551 lb)Max.: 250 kg
(551 lb)- Number of cups
4 unit
- Overall length
Min.: 1,480 mm
(58.27 in)Max.: 1,480 mm
(58.27 in)- Total width
Min.: 380 mm
(14.96 in)Max.: 380 mm
(14.96 in)- Headroom
Min.: 1,190 mm
(46.85 in)Max.: 1,190 mm
(46.85 in)- Weight
Min.: 81 kg
(178.57 lb)Max.: 98 kg
(216.05 lb)
Description
Overview
Operated by compressed air and built with a robust structure, the AVGLP4-MR-250 vacuum glass lifter is designed to lift, tilt and manually rotate glass sheets at any vertical angle. Extended lifting bars increase coverage for larger panels. Independent battery power and safety features (stainless-steel backup vacuum tank, automatic vacuum pumping, audio/visual alarm) support reliable operation.
Key features
Specifications (metric / imperial)
Pad diameter (seal to seal): 280 mm / 11"
Number of pads: 4
Working load limit (WLL): 250 kg / 551 lb
Net weight: 81 kg / 179 lb
Gross weight: 98 kg / 216 lb
Packaging dimensions: L1480 x W380 x H1190 mm / 58 x 15 x 46.9 in
Battery / Alarm system
Power supply: 3.7V Li‑Po battery
Battery capacity: 2000 mAh x 1
Adapter: DC 5V‑1A
Standby time: 720 hours
Charging cycle: 1000 times
Charging time: 2 hours
Non‑stop working time: 7 hours
Battery warranty: 6 months
Compressed air requirement
Air consumption: 180 liters/minute
Supply air pressure: 5 bars (72 psi)
Why choose the AVGLP4-MR-250
Versatile handling for tilting and rotating glass panels, extended lifting area with bars, and layered safety systems (backup tank and automatic pumping) to maintain load security and operational continuity.
Technical specifications
Operated by compressed air and built with a robust structure, the AVGLP4-MR-250 vacuum glass lifter is designed to lift, tilt and manually rotate glass sheets at any vertical angle. Extended lifting bars increase coverage for larger panels. Independent battery power and safety features (stainless-steel backup vacuum tank, automatic vacuum pumping, audio/visual alarm) support reliable operation.
Key features
- 0–90° pneumatic tilt for horizontal/vertical switching
- 360° manual rotation for sheet orientation
- Extended bars for wider lifting coverage
- Stainless-steel backup vacuum tank to maintain vacuum on power loss
- Automatic vacuum pumping to restore pressure
- Audio/visual alarm system
- ON/OFF slide valve for attachment/release
- Independent 3.7V Li‑Po battery operation
- 12‑month overall warranty; 6‑month battery warranty
Specifications (metric / imperial)
Pad diameter (seal to seal): 280 mm / 11"
Number of pads: 4
Working load limit (WLL): 250 kg / 551 lb
Net weight: 81 kg / 179 lb
Gross weight: 98 kg / 216 lb
Packaging dimensions: L1480 x W380 x H1190 mm / 58 x 15 x 46.9 in
Battery / Alarm system
Power supply: 3.7V Li‑Po battery
Battery capacity: 2000 mAh x 1
Adapter: DC 5V‑1A
Standby time: 720 hours
Charging cycle: 1000 times
Charging time: 2 hours
Non‑stop working time: 7 hours
Battery warranty: 6 months
Compressed air requirement
Air consumption: 180 liters/minute
Supply air pressure: 5 bars (72 psi)
Why choose the AVGLP4-MR-250
Versatile handling for tilting and rotating glass panels, extended lifting area with bars, and layered safety systems (backup tank and automatic pumping) to maintain load security and operational continuity.
Technical specifications
- Model: AVGLP4-MR-250
- Operation: compressed-air vacuum lifter for glass
- Functions: lift, tilt 0–90°, manual 360° rotation, attach/release
- Pads: 4 × 280 mm (seal to seal)
- Working load limit: 250 kg
- Air consumption: 180 l/min at 5 bars
- Net/Gross weight: 81 / 98 kg
- Packaging: 1480 × 380 × 1190 mm
- Battery: 3.7V Li‑Po 2000 mAh; adapter DC 5V‑1A
- Warranty: 12 months (device); battery 6 months
