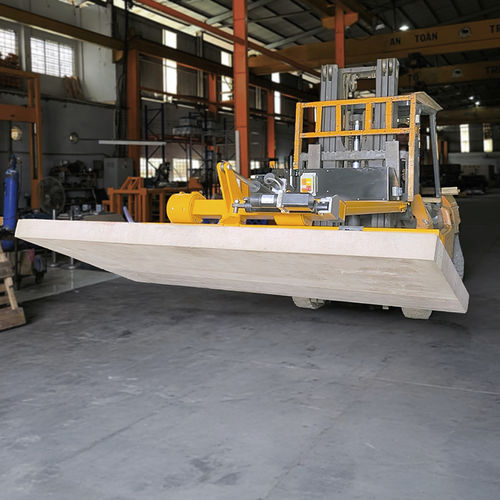

Flat part vacuum lifter FMVLA04-2T

for concrete slabsfor wooden sheetsglass plate

The Aardwolf FMVLA04-2T is a heavy-duty forklift-mounted vacuum lifter designed for lifting, lowering and positioning large sheets, plates and panels weighing up to 2,000 kg.

Combining a powerful vacuum lifting system with a forklift-mounted design, the FMVLA04-2T provides a versatile material handling solution for glass, stone slabs, metal sheets, concrete panels, plastics, timber and laminated panels.

The unit can handle sheet materials up to 3,000 × 3,000 mm and features large 508 × 808 mm adjustable vacuum pads, allowing the lifting configuration to be adapted to different panel sizes.

An electrically operated remote control provides 90° rotation and tilting, allowing operators to reposition large panels between different orientations without relying on conventional clamps or slings.

The automatic pressure control system activates the vacuum pump when required to maintain the necessary vacuum level. An audio/visual safety system provides additional monitoring during lifting operations.

Powered by a 24V-100A battery system, the FMVLA04-2T provides up to 3 hours of continuous operation and more than 100 hours of standby time.

The attachment is connected to the forklift using a secure chain system, transforming suitable forklifts into versatile vacuum handling equipment for factories, warehouses, construction sites and material processing facilities.

The Aardwolf FMVLA04-2T is a heavy-duty forklift-mounted vacuum lifter designed for lifting, lowering and positioning large sheets, plates and panels weighing up to 2,000 kg.

Combining a powerful vacuum lifting system with a forklift-mounted design, the FMVLA04-2T provides a versatile material handling solution for glass, stone slabs, metal sheets, concrete panels, plastics, timber and laminated panels.

The unit can handle sheet materials up to 3,000 × 3,000 mm and features large 508 × 808 mm adjustable vacuum pads, allowing the lifting configuration to be adapted to different panel sizes.

An electrically operated remote control provides 90° rotation and tilting, allowing operators to reposition large panels between different orientations without relying on conventional clamps or slings.

The automatic pressure control system activates the vacuum pump when required to maintain the necessary vacuum level. An audio/visual safety system provides additional monitoring during lifting operations.

Powered by a 24V-100A battery system, the FMVLA04-2T provides up to 3 hours of continuous operation and more than 100 hours of standby time.

The attachment is connected to the forklift using a secure chain system, transforming suitable forklifts into versatile vacuum handling equipment for factories, warehouses, construction sites and material processing facilities.



Features

• Electric remote control for 90° rotation and tilt.
• Adjustable vacuum pads for varied panel sizes and shapes.
• Pressure-control system automatically activates the vacuum pump if vacuum level drops below the set threshold.
• Battery compliant with Australian Standard AS4991-2004.
• Audio/visual safety indicators for operator awareness.
• Secure integration to forklift via safety chain.
• Cost-effective, versatile alternative to magnets, clamps or slings for sheet handling.

Specifications
Metric — Imperial
Max panel (length × width): 3000 x 3000 mm — 118" × 118"
Pad size: 508 x 808 mm — 20" × 32"
Working load limit (WLL): 2000 kg — 4408 lb
Net weight: (not specified)
Gross weight: (not specified)
Packaging dimensions: (not specified)

Battery information
Power supply: 24V-100A battery
Charging requirements: 24V-20A charger
Standby time: >100 hours
Charging cycles: 1000 cycles
Charging time: 5 hours
Continuous working time (non-stop): 3 hours
Warranty: 6 months

Motor information
Model: THOMAS – VTE 10
Motor rating: 24V AC – 30A
Flow rate: 10 m3/h
Vacuum level: 150 mbar abs

Technical specifications

• Product code: FMVLA04-2T
• Suitable materials: glass, stone, metal, concrete, plastics, timber, laminates
• Rotation & tilt: 90° electrically operated via remote control
• Pad dimensions: 508 x 808 mm
• Max panel size: 3000 x 3000 mm
• Working load limit (WLL): 2000 kg
• Battery: 24V-100A (charger 24V-20A)
• Standby: >100 hours; Charging cycles: 1000; Charging time: 5 hours
• Continuous operation: up to 3 hours
• Motor/pump: THOMAS – VTE 10 (24V AC – 30A); Flow 10 m3/h; Vacuum 150 mbar abs
• Safety: audio/visual indicators and safety chain for forklift integration
• Operation: remote control
