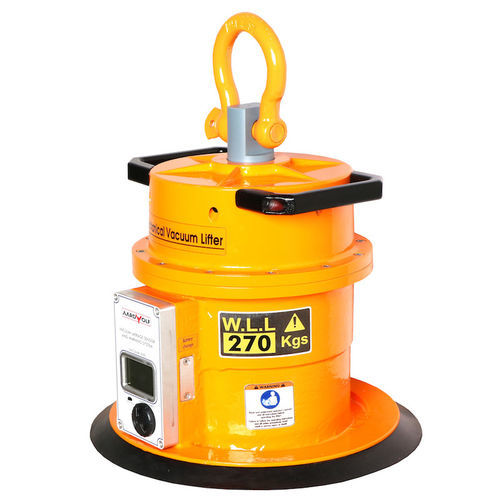

Plate vacuum lifting device AMMVL270

for stone slabsfor metal sheetsfor sheets

General
No external power source is required. Designed for horizontal handling of non-porous sheets and plates such as diamond-sawn or polished granite, engineered stone, metals, plastics and fiberglass. An automatic self-cycling valve at the piston base controls the vacuum grip-and-release cycle, enabling repetitive handling tasks.

Features

• Self-powered, self-cycling vacuum system controlled by an automatic valve at the piston base
• Audible alarm powered by a non-rechargeable 9 V battery
• Vacuum gauge for visual monitoring of suction level
• Aluminum construction for reduced weight and corrosion resistance
• Low maintenance and immediately ready for operation

Specifications
Metric — Imperial
Number of pads: 1 — -
Pad diameter (seal to seal): 300 mm — 11.8"
Working load limit (WLL): 270 kg — 595 lb
Net weight: 22 kg — 49 lb
Gross weight: 27 kg — 60 lb
Packaging dimensions: L390 x W390 x H430 mm — 15.3" x 15.3" x 17"

Battery / Power
Power supply: 9 V non-rechargeable (for audible alarm only)
Warranty: 6 months

Technical data

• Product code: AMMVL270
• Construction: Aluminium
• Intended use: horizontal handling of non-porous sheets and plates (stone, metals, plastics, fiberglass)
• Operation: self-powered vacuum grip-and-release—no external power for lifting function
• Included safety features: audible alarm and vacuum gauge
