Block lifter AVBL380

General
The Aardwolf AVBL380 is a battery-powered vacuum block lifter designed for handling concrete blocks, stone slabs (marble, granite) and similar materials on construction and fabrication sites. Compact and suitable for suspension from cranes, hoists or lifting frames, the unit lifts up to 380 kg depending on the suction pad used. It supports multiple interchangeable pads and integrates visual and audible safety alerts for controlled operation.

Features

• Capacity: Up to 380 kg (depends on pad size)
• Pad options: Interchangeable suction pads for different materials and shapes
• Power: Clip-in 12V–24Ah rechargeable battery with onboard recharge port
• Energy management: Automatic vacuum control to optimise battery life
• Operation: One-press engage/release vacuum function
• Safety: Visual and audible alarms, warning light, pressure gauge and vacuum storage tank
• Handling: Built-in legs for safe parking and pad protection

Specifications

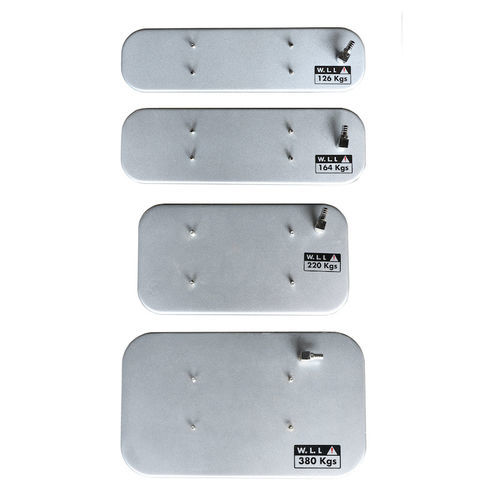

Working load limit (pad sizes / metric): 420x220 mm: 220 kg; 500x125 mm: 126 kg; 500x150 mm: 164 kg; 500x300 mm: 380 kg
Working load limit (pad sizes / imperial): 16.5"x8.7": 485 lbs; 19.7"x4.9": 278 lbs; 16.5"x5.9": 362 lbs; 19.7"x11.8": 838 lbs
Net weight: 53 kg (116.8 lbs)
Gross weight: 65 kg (143.3 lbs)
Packaging dimensions: L600 x W400 x H570 mm (23 5/8" x 15 3/4" x 22 1/2")

Battery information
Battery capacity: 12V - 24Ah
Rated continuous working time: 5 hours

Motor information
Vacuum flow rate: 32 L/min
Motor: 12V - 4.5A

Notes
Different suction pad sizes and custom plates available on request. Add selected pad weight when calculating shipping weight.
