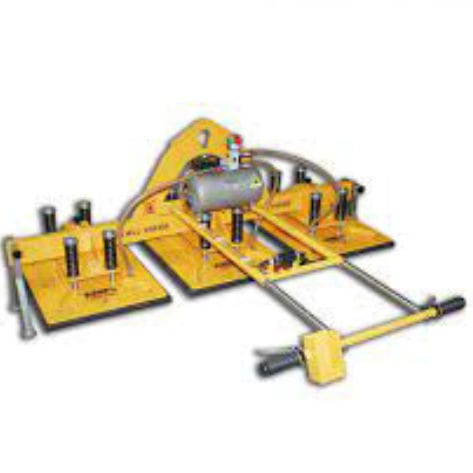

Stone slab vacuum lifting device AVLP3-3750

for concrete slabsfor marblepneumatic

General
The AVLP3-3750 vacuum lifter is designed to lift concrete panels and to handle smooth or rough marble and granite slabs. Powered by compressed air for industrial material handling.

Features

• The stainless steel vacuum tank ensures safe pickup in case of a sudden power break to the pump.
• A rechargeable 3.7V battery powers the audio and visual alarm system.
• Slider valve with ON/OFF position for attachment to and release from vacuum pads.

Specifications
Metric — Imperial
Number of pad: 3 — -
Pad sizes: 800×500 mm — 31.5"x19.7"
Working load limit: 3750 kg — 8267 lb
Net weight: 220 kg — 485 lb
Gross weight: - — -
Packaging dimensions: - — -

Battery information for the device
Code battery: GBA 12V 2.0Ah Bosch
Type battery: Lithium-ION
Voltage: 12V
Current: 2.0Ah
Quantity: 1
Continuous operation time with mode-saving pressure: 2 hours
Working time with mode-saving pressure: 6 hours
Continuous operation time with mode audio alarm only: 120 hours
Working time with mode audio alarm only: 360 hours

Battery charger
Code battery: GAL 12V-40 Bosch
Input supply voltage: 220-240VAC
Output voltage: 12V
Output current: 4.0Ah
Quantity: 1
Full charger time: 0.5 hour
Weight: 460 gram

Compressed air requirement
Air consumption: 236 liters/minute
Supply air pressure: 5.8 bars (72 psi)

Technical specifications

• Product code: AVLP3-3750
• Number of vacuum pads: 3
• Pad dimensions: 800 x 500 mm
• Working load limit (WLL): 3750 kg
• Net weight: 220 kg
• Battery: GBA 12V 2.0Ah Bosch, Lithium-ION, 12V, 2.0Ah
• Battery operating times: 2 h (continuous with mode-saving pressure), 6 h (working time with mode-saving pressure), 120 h (continuous with audio alarm only), 360 h (working time with audio alarm only)
• Charger: GAL 12V-40 Bosch, input 220-240VAC, output 12V 4.0Ah, full charge time 0.5 h
• Compressed air: 236 L/min, supply pressure 5.8 bars (72 psi)
