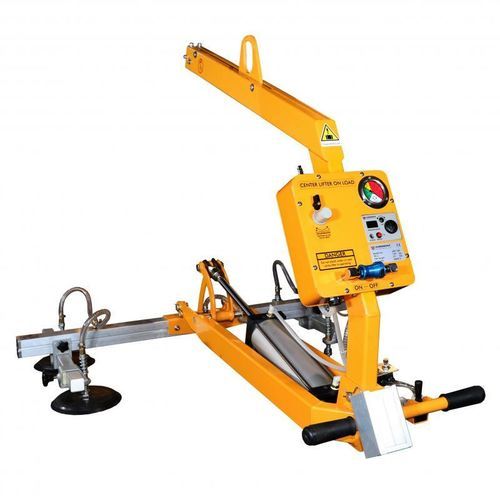

4-point vacuum lifting device ARV-180

for flat partsfor slabsglass plate

General
The Rotation Vacuum Lifter ARV-180 provides a pneumatic solution for handling, lifting and 180° rotation of slabs and glass panels in construction and manufacturing. Its vertical 180° rotation enables precise flipping and repositioning of panels for transport, storage and installation. The unit uses compressed air for lift and rotation and includes an audio/visual alarm and vacuum gauge to monitor load safety.

Features

• 180° material rotation: Precise vertical flipping for efficient handling and installation.
• High vacuum performance: Secure grip on panels to reduce slippage and damage.
• Pneumatic operation: No external electrical power or lubrication required for lift/rotation.
• Gas spring counterbalance: Self-adjusts the lifting counterweight for smooth operation.
• Slide valve control: Controlled air inlet/outlet for safe hold and release of materials.
• Audio/visual safety system: Continuous monitoring with alarms in case of vacuum loss.

Specifications
Metric | Imperial
Number of pads: 4 | -
Pad diameter: 200 mm | 8"
Working load limit (WLL): 160 kg | 353 lb
Net weight: 69 kg | 152 lb
Gross weight: 110 kg | 243 lb
Packaging dimensions: L1420 x W520 x H1210 mm | 55.9" x 20.5" x 47.6"

Battery information for the alarm system
Power supply: 3.7V LiPo battery
Battery capacity: 2000 mAh x 1
Adapter: DC 5V-1A
Standby time: 720 hours
Charging cycles: 1000
Charging time: 2 hours
Non-stop working time: 7 hours
Warranty: 6 months

Compressed air requirement
Air consumption: 180 liters/minute
Supply air pressure: 5 bars (72 psi)

Technical specifications

• Model: ARV-180
• Brand: Aardwolf
• WLL: 160 kg (353 lb)
• Number of suction pads: 4
• Pad diameter: 200 mm (8")
• Net weight: 69 kg
• Gross weight: 110 kg
• Packaging dimensions: L1420 x W520 x H1210 mm (55.9" x 20.5" x 47.6")
• Battery (alarm): 3.7V LiPo, 2000 mAh
• Adapter: DC 5V-1A
• Battery standby: 720 hours; non-stop working time: 7 hours; charging time: 2 hours; charging cycles: 1000
• Air consumption: 180 L/min; supply pressure: 5 bar (72 psi)
• Key functions: 180° rotation, pneumatic operation, gas spring counterbalance, slide valve control, audio/visual safety system
