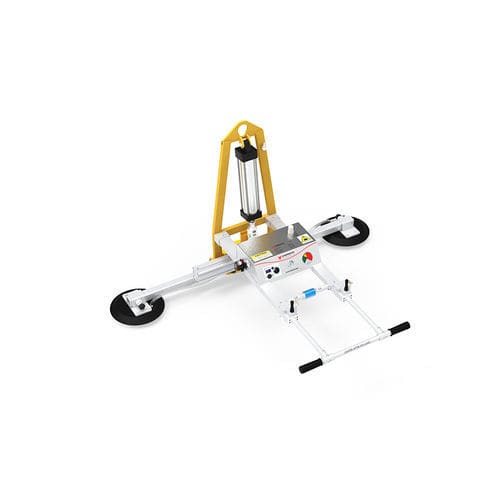

Glass plate vacuum lifting device AVGLP2-AR

for flat partsadjustablehorizontal

General
The Aardwolf AVGLP2-AR vacuum glass lifter is designed to lift, tilt and rotate glass up to 90° for handling and installation tasks. Extending bars increase the lifting coverage; pneumatic systems provide vertical/horizontal tilt and an air cylinder provides 90° rotation. The unit integrates automatic vacuum recovery and an audio/visual alarm to support safe operation.

Features

• Pneumatic vertical-horizontal tilting 0–90°
• 90° rotation driven by air cylinder
• Automatic vacuum pumping on vacuum loss
• Audio/visual alarm system with rechargeable battery
• Attach/release via ON/OFF slide valve; extended bars for increased coverage

Specifications
Metric (mm–kg) / Imperial (inch–lb)
Model: AVGLP2-AR
Number of pads: 2
Pad diameter (overall / seal-to-seal): 300 mm / 280 mm | 11.8" / 11"
Working load limit (WLL): Vertical 200 kg; Horizontal 200 kg | 441 lb
Net weight: 60 kg | 132 lb
Packaging dimensions: L 860 x W 710 x H 1170 mm | 33.8" x 28" x 46"

Battery information for the alarm system
Description | Specification
Battery: GBA 12V 2.0Ah Bosch, Lithium‑ION
Voltage / Capacity: 12 V / 2.0 Ah
Quantity: 1
Continuous operation (pressure-saving mode): 2 hours
Working time (pressure-saving mode): 6 hours
Continuous operation (audio alarm only): 120 hours
Working time (audio alarm only): 360 hours
Charger: GAL 12V-40 Bosch (Input 220–240 V AC, Output 12 V, 4.0 A)
Full charge time: 0.5 hour
Charger weight: 460 g

Compressed air requirement
Air consumption: 110 liters/minute
Supply air pressure: 5 bar (72 psi)

Technical characteristics / specifications

• Brand: Aardwolf
• Model: AVGLP2-AR
• Number of pads: 2
• Pad diameter: overall 300 mm; seal-to-seal 280 mm
• Working load limit: 200 kg (vertical), 200 kg (horizontal)
• Net weight: 60 kg
• Pneumatic tilt: 0–90°
• Rotation: 90° by air cylinder
• Automatic vacuum pump activation on vacuum loss
• Audio/visual alarm with rechargeable battery and charger
• Attach/release via ON/OFF slide valve
• Air consumption: 110 L/min at 5 bar (72 psi)
