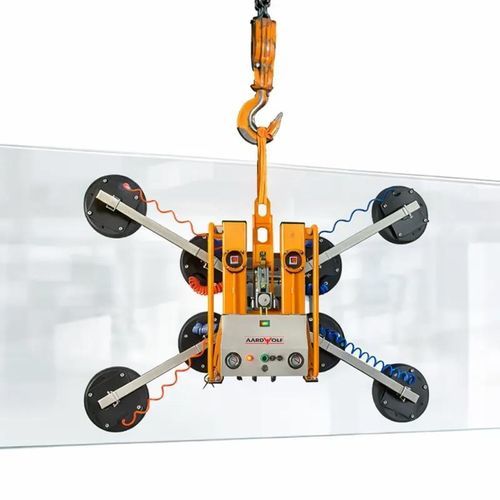

Glass plate vacuum lifting device VGG8Dfor platesadjustableDC power
Add to favorites
Compare this product
Characteristics
- Product applications
- glass plate, for plates
- Type
- adjustable
- Power
- DC power
- Options
- 90°-pivoting, load rotating, double, rotary, battery-powered
- Carrying capacity
Max.: 650 kg
(1,433 lb)Min.: 650 kg
(1,433 lb)- Number of cups
8 unit
- Weight
75 kg
(165.35 lb)
Description
General
The VGG8D (Vacuum GlassGrip) is a battery-powered vacuum glass lifter designed for oversized glass panels and large-scale curtain wall and façade installations. It features eight Ø290 mm suction pads and dual vacuum circuits to ensure stable lifting and precise positioning. Optional wireless remote control and continuous 360° rotation facilitate complex glazing operations while maintaining operational safety.
Key Features
Applications
SPECIFICATIONS
The VGG8D (Vacuum GlassGrip) is a battery-powered vacuum glass lifter designed for oversized glass panels and large-scale curtain wall and façade installations. It features eight Ø290 mm suction pads and dual vacuum circuits to ensure stable lifting and precise positioning. Optional wireless remote control and continuous 360° rotation facilitate complex glazing operations while maintaining operational safety.
Key Features
- Dual vacuum circuits
- Eight Ø290 mm suction pads
- 0–90° tilting and continuous 360° rotation
- Battery-powered operation (DC 12V–15Ah)
- Optional wireless remote control
Applications
- Large curtain wall panels
- Oversized insulated glass units (IGUs)
- High-rise glazing installations
- Heavy façade elements requiring maximum stability
SPECIFICATIONS
- Max Load Capacity — 650 kg
- Suction Cups — 8 × 290 mm diameter
- Tilting Range — 0° to 90°
- Rotation — 360° endless rotation
- Control — Manual or optional wireless remote
- Battery — DC 12V–15Ah
- Weight — 75 kg
