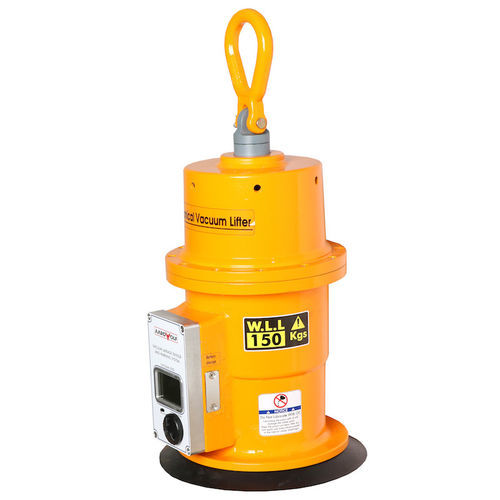

Metal sheet vacuum lifting device AMMVL150

for stone slabsfor aluminum platefor plates

General
No power source is required. Ideal for horizontal handling of non-porous sheet and plate materials such as diamond-sawn or polished granite, engineered stone, metals, plastics and fiberglass. An automatic self-cycling valve at the piston's base controls the vacuum grip and release cycle. Handle sold separately; manual handling by two persons for transport.

Features

• Self-powered, self-cycling vacuum operation
• Audio alarm powered by a non-rechargeable 9 V battery
• Immediately ready for operation
• Low maintenance
• Aluminum construction
• Lightweight design

Specifications
With swivel hook
Metric / Imperial
Pad diameter (seal to seal): 200 mm / 8"
Working load limit: 150 kg / 331 lb
Net weight: 12 kg / 26 lb
Gross weight: 16 kg / 35 lb
Packaging dimensions: L.320 x W.320 x H.390 mm / 12.6" x 12.6" x 15.3"

With handle hook
Metric / Imperial
Working load limit: 150 kg / 331 lb
Net weight: 14 kg / 31 lb
Package weight: 23 kg / 51 lb
Packaging dimensions: 830 x 280 x 570 mm / 32.7" x 11" x 22.4"

Battery information
Power supply: 9 V non-rechargeable battery
Warranty: 6 months

Technical specifications

• Product code: AMMVL150
• Type: Mechanical vacuum lifter, single pad
• Pad diameter (seal to seal): 200 mm
• Working load limit (WLL): 150 kg (331 lb)
• Net weight: 12 kg (with swivel hook); 14 kg (with handle hook)
• Gross weight: 16 kg (with swivel hook); 23 kg (with handle hook)
• Packaging dimensions (without handle): 320 x 320 x 390 mm
• Packaging dimensions (with handle): 830 x 280 x 570 mm
• Alarm power: 9 V non-rechargeable battery
• Material: Aluminum construction
• Handle sold separately — manual transport by two persons
• Low maintenance; immediately ready for operation
• Warranty: 6 months
