Flat part vacuum lifting device VGG6Dfor platesglass plateDC power
Add to favorites
Compare this product
Characteristics
- Product applications
- for flat parts, for plates, glass plate
- Power
- DC power
- Options
- battery-powered, 90°-pivoting, double, rotary
- Carrying capacity
Max.: 650 kg
(1,433 lb)Min.: 650 kg
(1,433 lb)- Number of cups
6 unit
- Weight
Max.: 75 kg
(165.35 lb)Min.: 75 kg
(165.35 lb)
Description
General

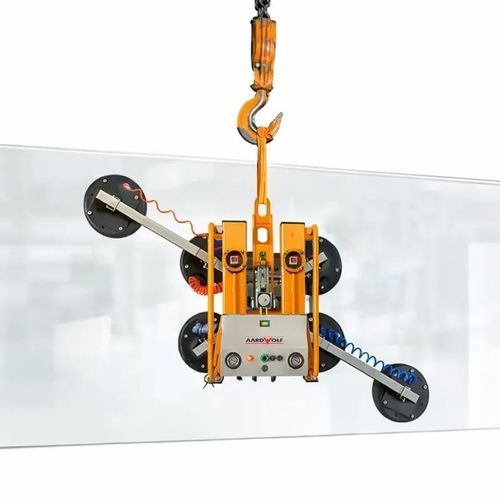

The VGG6D vacuum glass lifter is engineered for insulated glass units (IGUs) and large-format glass panels. It combines six Ø290 mm suction pads with a dual vacuum circuit to provide secure handling and redundancy. Fully battery-powered, the unit enables precise positioning with 0–90° tilting and continuous 360° rotation, and an optional wireless remote control facilitates operation in façade installation and at height.
Key Features
Applications
Specifications
Max Load Capacity: 650 kg
Suction Cups: 6 × 290 mm diameter
Tilting Range: 0° to 90°
Rotation: 360° endless rotation
Control: Manual or optional wireless remote
Battery: DC 12V–15Ah
Weight: 75 kg
Technical specifications
The VGG6D vacuum glass lifter is engineered for insulated glass units (IGUs) and large-format glass panels. It combines six Ø290 mm suction pads with a dual vacuum circuit to provide secure handling and redundancy. Fully battery-powered, the unit enables precise positioning with 0–90° tilting and continuous 360° rotation, and an optional wireless remote control facilitates operation in façade installation and at height.
Key Features
- Dual vacuum circuits for redundancy
- Six Ø290 mm suction pads
- 0–90° tilting and continuous 360° rotation
- Battery-powered operation (DC 12V–15Ah)
- Optional wireless remote control
Applications
- Installation of large insulated glass units (IGUs)
- Glass façade and curtain wall installation
- Projects requiring precise angular alignment
- Work at height or in confined/hard-to-reach locations
Specifications
Max Load Capacity: 650 kg
Suction Cups: 6 × 290 mm diameter
Tilting Range: 0° to 90°
Rotation: 360° endless rotation
Control: Manual or optional wireless remote
Battery: DC 12V–15Ah
Weight: 75 kg
Technical specifications
- Product Code: VGG6D
- Max Load Capacity: 650 kg
- Suction Cups: 6 × 290 mm diameter
- Tilting Range: 0° to 90°
- Rotation: 360° endless rotation
- Control: Manual or optional wireless remote
- Battery: DC 12V–15Ah
- Weight: 75 kg
