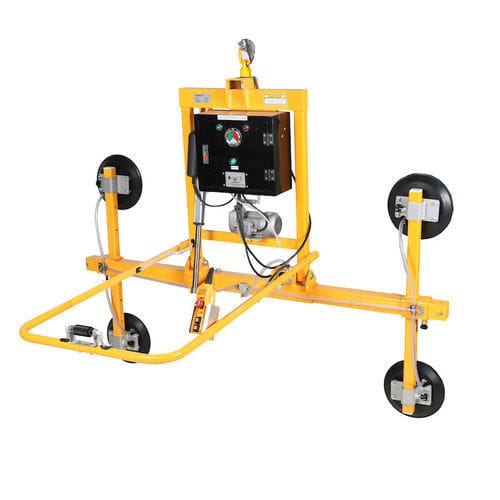

The Aardwolf AEVGLP4-500 Electric Vacuum Glass Lifter is designed for lifting, tilting and positioning large glass panels in construction, glazing and glass processing applications. Its electric tilting mechanism moves glass sheets between horizontal and vertical positions through 90°.
The lifter features four 300 mm vacuum pads mounted on adjustable crossbars and longitudinal beams to accommodate different glass dimensions. An electric control cabinet, ON/OFF slide valve, audio-visual alarm and automatic vacuum pump restart support controlled operation and vacuum monitoring.
Features- Handling of long glass sheets and panels
- Electric cabinet-operated control with integrated remote
- Audio and visual alarm system
- Vertical-horizontal tilting from 0 to 90° via remote
- Adjustable vacuum pads to match glass sizes
- Automatic vacuum pumping on vacuum loss
- Attach and release glass by ON/OFF slide valve
- Adjustable crossbar and stringer beams for flexible positioning
SpecificationsNumber of pads: 4
Linear activator: 90 degrees
Pad diameter: 300 mm / 11.8 in
Maximum glass size (L x W): 3000 x 1800 mm / 118 x 71 in
Minimum glass size (L x W): 2000 x 800 mm / 78.7 x 31.5 in
Adjustable crossbar (each side): 400 mm
Adjustable stringer beams (each side): 250 mm
Working load limit: Vertical 400 kg; Horizontal 500 kg
Net weight: 145 kg
Gross weight: 210 kg
Packaging dimensions: 2050 x 430 x 1280 mm
Battery information (alarm system)Power supply: 3.7V LiPo battery
Battery capacity: 2000 mAh x 1
Adapter: DC 5V-1A
Standby time: 720 hours
Charging cycles: 1000
Charging time: 2 hours
Non-stop working time: 7 hours
Warranty: 6 months (alarm battery)
Motor informationAC 380V — 3 phase 50/60 Hz
Vacuum flow rate: 4.1 / 4.7 m3/hour
Characteristics / Technical specifications- Model: AEVGLP4-500
- Number of vacuum pads: 4
- Pad diameter: 300 mm
- Maximum glass size: 3000 x 1800 mm
- Minimum glass size: 2000 x 800 mm
- Adjustable crossbar: 400 mm (each side)
- Adjustable stringer beams: 250 mm (each side)
- Working load limit: Vertical 400 kg / Horizontal 500 kg
- Net weight: 145 kg; Gross weight: 210 kg
- Packaging: 2050 x 430 x 1280 mm
- Alarm battery: 3.7V LiPo, 2000 mAh (standby 720 h, charging time 2 h)
- Motor: AC 380V, 3-phase, vacuum flow 4.1/4.7 m3/h
