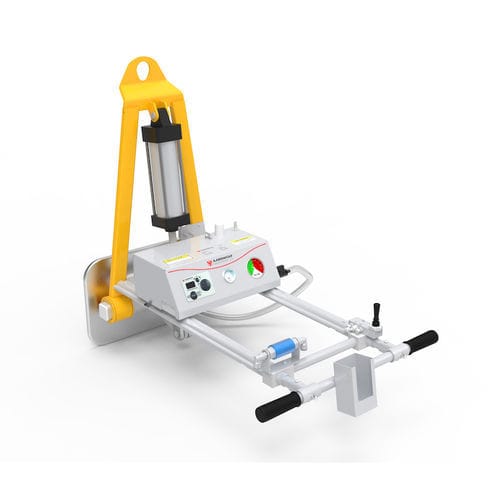

Slab vacuum lifting device AVLP1-250

for marblefor stone slabsvertical

General
This vacuum lifter is engineered for handling smooth and rough marble and granite slabs. It provides secure lifting and allows pneumatic tilting from vertical to horizontal for precise positioning. The unit is compressed-air powered for consistent operation and includes safety and alarm systems adapted for industrial environments.

Features

• Pneumatic vertical-horizontal tilting 0°–90° by pneumatic piston.
• Vacuum tank for safe pickup in case of sudden pump power loss.
• Rechargeable battery (3.7 V LiPo) powers audio-visual alarm.
• Slide valve with ON/OFF positions for attaching and releasing material.

Specifications
Metric / Imperial
Number of pad: 1
Pad sizes: 500 x 300 mm — 19.7" x 11.8"
Working load limit: Vertical: 125 kg — 276 lb; Horizontal: 250 kg — 551 lb
Net weight: 43 kg — 95 lb
Gross weight: 73 kg — 161 lb
Packaging dimensions: L1070 x W390 x H980 mm — 42.1" x 15.4" x 38.6"

Battery information for the alarm system
Power supply: 3.7 V LiPo battery
Battery capacity: 2000 mAh × 1
Standby time: 720 hours
Charging cycle: ~1000 times
Charging time: 2 hours
Non-stop working time: 7 hours

Compressed air requirement
Air consumption: 180 liters/minute
Supply air pressure: 5 bars (72 psi)

Technical specifications

• Brand: Aardwolf
• Model: AVLP1-250
• Product type: Vacuum lifter for marble and granite slabs
• Drive: Compressed-air powered
• Tilting: Pneumatic 0°–90° (vertical-horizontal)
• Number of pads: 1
• Pad size: 500 x 300 mm (19.7" x 11.8")
• Working load limit (WLL): Vertical 125 kg; Horizontal 250 kg
• Vacuum safety: Vacuum tank for secure pickup on sudden pump power loss
• Alarm system: Audio/visual alarm powered by rechargeable 3.7 V LiPo (2000 mAh) battery
• Alarm battery performance: Standby 720 hours; Non-stop working 7 hours; Charging time 2 hours; Charging cycles ~1000
• Controls: Slide valve ON/OFF for attach/release
• Net weight: 43 kg; Gross weight: 73 kg
• Packaging dimensions: L1070 x W390 x H980 mm
• Compressed air: 180 L/min at 5 bars (72 psi)
