90°-pivoting vacuum lifter AVGLM2-200
rotarypivotingadjustable

90°-pivoting vacuum lifter - AVGLM2-200 - AARDWOLF INDUSTRIES LLC - rotary / pivoting / adjustable
90°-pivoting vacuum lifter - AVGLM2-200 - AARDWOLF INDUSTRIES LLC - rotary / pivoting / adjustable
90°-pivoting vacuum lifter - AVGLM2-200 - AARDWOLF INDUSTRIES LLC - rotary / pivoting / adjustable - image - 2
90°-pivoting vacuum lifter - AVGLM2-200 - AARDWOLF INDUSTRIES LLC - rotary / pivoting / adjustable - image - 3
90°-pivoting vacuum lifter - AVGLM2-200 - AARDWOLF INDUSTRIES LLC - rotary / pivoting / adjustable - image - 4
90°-pivoting vacuum lifter - AVGLM2-200 - AARDWOLF INDUSTRIES LLC - rotary / pivoting / adjustable - image - 5
90°-pivoting vacuum lifter - AVGLM2-200 - AARDWOLF INDUSTRIES LLC - rotary / pivoting / adjustable - image - 6
Add to favorites
Compare this product

Characteristics

Options
90°-pivoting, rotary, pivoting
Type
adjustable
Product applications
glass plate
Power
pneumatic
Carrying capacity

Max.: 200 kg
(441 lb)

Min.: 200 kg
(441 lb)

Overall length

Max.: 1,480 mm
(58.27 in)

Min.: 1,480 mm
(58.27 in)

Total width

Max.: 460 mm
(18.11 in)

Min.: 460 mm
(18.11 in)

Weight

Max.: 80 kg
(176.37 lb)

Min.: 42 kg
(92.59 lb)

Description

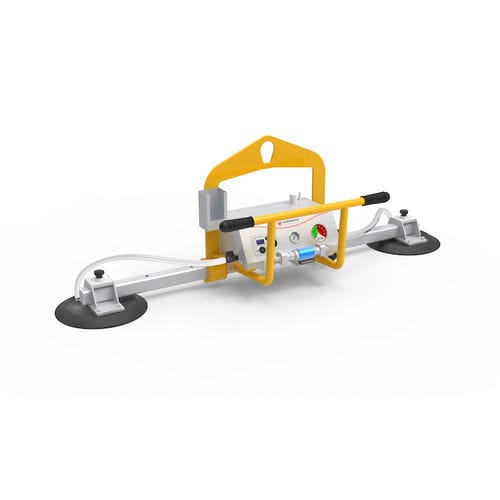

The Aardwolf AVGLM2-200 is a pneumatic vacuum glass lifter designed for lifting, tilting, rotating and positioning glass sheets in glazing workshops, glass processing facilities and industrial material handling applications. With a working load limit of 200 kg, this compressed-air-powered glass lifting device provides controlled handling of glass panels.

Its robust metal frame supports manual tilting from 0° to 90°, while rotating suction pads allow positioning at 45° and 90°. The vacuum pump operates at an air pressure of 5–6 bar. An integrated vacuum reserve tank helps maintain suction if the air supply is interrupted. Additional features include a rechargeable-battery-powered audible and visual alarm, an energy-saving system and an ON/OFF sliding valve for vacuum control.

Key specifications: 200 kg working load limit; 300 mm suction pad diameter; 0–90° manual tilting; 45° and 90° rotation positions; 5–6 bar operating pressure; 42 kg net weight.

The AVGLM2-200 is a versatile glass handling solution for industrial lifting and positioning operations.

Features
  • Durable metal structure with manual tilt from 0° to 90°.
  • Rotating vacuum pads as standard enabling operator rotation to 45° and 90°.
  • Compressed air-operated vacuum pump, operating at 5–6 Bar.
  • Integrated large vacuum tank to secure pick-up and provide safety during pump interruption.
  • Acoustic and visual alarm system powered by a rechargeable battery.
  • Energy saver included as standard.
  • Slider valve with clear ON/OFF positions for attachment and release of vacuum pads.


Specifications
Pad diameter: 300 mm | 11.8 in
Working load limit (WLL): 200 kg | 441 lb
Net weight: 42 kg | 93 lb
Gross weight: 80 kg | 176 lb
Packaging dimensions: L 1480 x W 460 x H 820 mm | 58.3 x 18 x 32.3 in

Technical characteristics
  • Model: AVGLM2-200
  • Pad diameter: 300 mm (11.8 in)
  • Working load limit: 200 kg (441 lb)
  • Net weight: 42 kg (93 lb)
  • Gross weight: 80 kg (176 lb)
  • Vacuum pump: compressed air-operated (5–6 Bar)
  • Tilt: manual 0°–90°; rotating pads to 45° and 90°
  • Safety: large vacuum tank; acoustic and visual alarm with rechargeable battery
  • Controls: slider valve with clear ON/OFF positions
  • Accessories: energy saver included
