Plate vacuum lifting device AVLB4

for metal sheetsfor flat partsglass plate

General

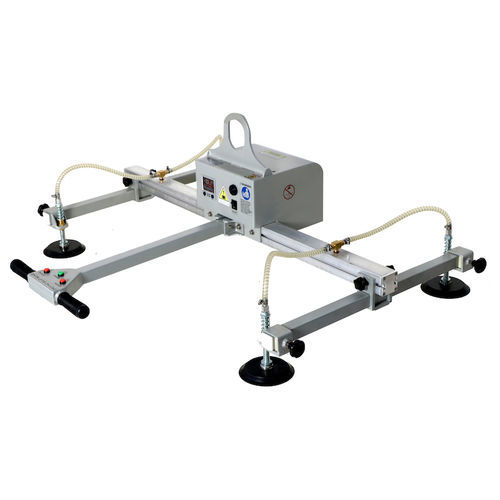

The AVLB4 is a battery-powered vacuum lifter designed for horizontal lifting of glass, laser-cut parts, thin metal sheets and panels. Compact construction allows quick hook-up to hoists and cranes. WLL 160 kg; suitable for handling panels up to 2.6 x 1.6 m.

Features

• Vacuum tank with audio/visual alarm for low vacuum.
• Lightweight aluminum construction for easier handling.
• Attach and release material via Vacuum and Release buttons or ON/OFF slide valve.
• Integrated battery charger; simple operation.
• Available versions: battery (DC), pneumatic (air) or AC 220 V.

Specifications (Metric / Imperial)
Pad diameter: 150 mm | 6"
Working load limit (WLL): 160 kg | 353 lb
Net weight: 28 kg | 62 lb
Gross weight: 40 kg | 88 lb
Packaging dimensions: 1350 x 300 x 510 mm | 53" x 12" x 20"

Battery information (lifter)

• Power supply: 12 V
• Battery capacity: 6.0 Ah
• Adapter/charger: DC 5V-1A (included)
• Standby time: 720 hours
• Charging time: 2 hours; up to 1000 charging cycles
• Non-stop working time: 2.5 hours
• Warranty: 6 months

Alarm battery (control)

• Type: 3.7 V LiPo
• Capacity: 2000 mAh
• Adapter: DC 5V-1A
• Standby time: up to 720 hours
• Charging time: 2 hours

Motor information

• Vacuum flow rate: 32.5 L/min
• Motor rating: 12 V, 4–6 A (depending on version)

Pneumatic version

• Air consumption: approx. 100 L/min
• Supply pressure: 6–7 bar

AC version (option)

• Supply: 220 V, single-phase, 50–60 Hz

Technical characteristics

• Model: AVLB4
• Intended use: horizontal lifting of glass, panels, thin metal sheets and laser-cut parts
• Construction: aluminum
• Operating modes: Battery (DC), Pneumatic, AC 220 V
• Attachment: vacuum pad system with slide valve and Vacuum/Release controls
• Alarm: audio/visual for low vacuum
