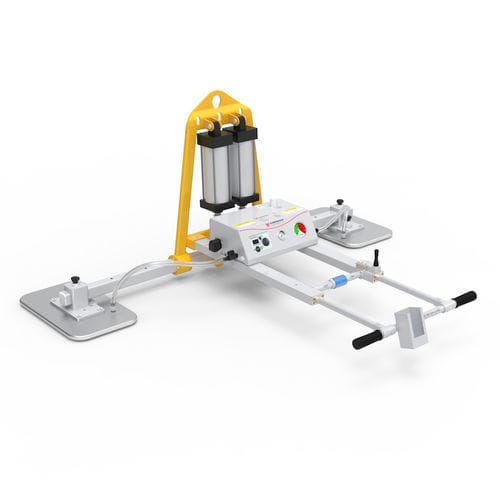

Slab vacuum lifting device AVLP2-500P

for stone slabsfor marblehorizontal

General
This vacuum lifter AVLP2-500P is designed for safe lifting and precise tilting of smooth and rough marble and granite slabs. Pneumatic tilt actuation, a vacuum safety tank and aluminium pads make it suitable for fabrication workshops, installation sites and industrial handling of stone panels.

Features

• Pneumatic tilting: Vertical–horizontal tilt from 0° to 90° controlled by a pneumatic piston for smooth positioning.
• Vacuum tank safety: Steel vacuum tank maintains suction in case of sudden loss of vacuum pump power.
• Rechargeable alarm system: Audio and visual alarm powered by a 12V Li‑ion battery alerts on low vacuum level.
• Slide valve control: Simple ON/OFF slide valve for reliable attachment and release of materials.

Specifications
Metric / Imperial
Number of pads: 2
Pad sizes: 500 x 300 mm / 19.7 x 11.8 in
Working load limit: Vertical: 250 kg; Horizontal: 500 kg / 551 lb; 1102 lb
Net weight: 70 kg / 154 lb
Gross weight: 106 kg / 234 lb
Packaging dimensions: L 1480 x W 430 x H 960 mm / 58.3 x 16.9 x 37.8 in

Battery information
Code battery: GBA 12V 2.0Ah Bosch
Type battery: Lithium‑ION
Voltage: 12 V
Capacity: 2.0 Ah
Quantity: 1
Continuous operation time (mode-saving pressure): 2 hours
Working time (mode-saving pressure): 6 hours
Continuous operation time (audio alarm only): 120 hours
Working time (audio alarm only): 360 hours

Battery charger
Code charger: GAL 12V-40 Bosch
Input supply voltage: 220-240 VAC
Output voltage: 12 V
Output current: 4.0 A
Quantity: 1
Full charge time: 0.5 hour
Weight: 460 g

Compressed air requirement
Air consumption: 180 L/min
Supply air pressure: 5 bars (72 psi)

Recommended use
For lifting, tilting and positioning marble and granite slabs in workshops, installation sites and industrial environments where safe handling of stone panels is required.

Technical specifications

• Model: AVLP2-500P
• Application: Lifting and tilting marble and granite slabs (smooth and rough)
• Number of pads: 2
• Pad material: Aluminium
• Pad size: 500 x 300 mm
• Tilting range: 0°–90° (pneumatic piston)
• Control: Slide valve ON/OFF
• Vacuum safety: Steel vacuum tank
• Alarm: 12V Li‑ion powered audio/visual alarm
• Air supply: 5 bar, 180 L/min
