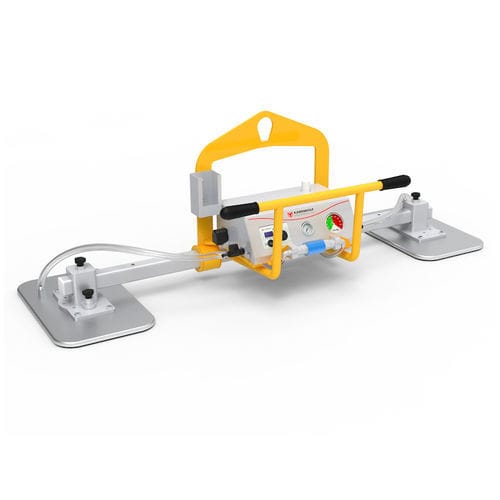

Stone slab vacuum lifting device AVLM2

for marblefor slabsfor concrete slabs

General
The Aardwolf Vacuum Lifter AVLM2 (model AVLM2, 500 kg WLL) is a compressed-air powered lifter designed for handling smooth and rough stone slabs such as marble, granite, limestone, sandstone and concrete panels. The unit permits lifting and manual tilting and includes an energy saver to reduce air consumption and noise.

Features

• Manual tilt of the metal structure from 0° to 90°.
• Rotating vacuum pads for quick orientation at 45° and 90°.
• Compressed air-operated vacuum pump (recommended supply 5–6 bar).
• Large vacuum tank for safe holding in case of sudden pump interruption.
• Audio-visual alarm system powered by a rechargeable battery.
• Energy saver included as standard.
• Slider valve with ON/OFF positions for secure attachment and controlled release.

Specifications
Metric | Imperial
Number of pads: 2 | -
Pad dimensions: 500 x 300 mm | 19.7" x 11.8"
Working load limit (WLL): 500 kg | 1102 lb
Net weight: 48 kg | 106 lb
Gross weight: 86 kg | 190 lb
Packaging dimensions: L1480 x W460 x H820 mm | 58.2" x 18.1" x 32.2"

Battery information for the device
Code battery: GBA 12V 2.0Ah Bosch
Type: Lithium‑ION
Voltage: 12V
Capacity: 2.0 Ah
Quantity: 1
Continuous operation (energy‑save mode): 2 hours
Working time (energy‑save mode): 6 hours
Continuous operation (audio alarm only): 120 hours
Working time (audio alarm only): 360 hours

Battery charger
Code charger: GAL 12V-40 Bosch
Input supply: 220–240 VAC
Output voltage: 12V
Output current: 4.0 A
Quantity: 1
Full charge time: 0.5 hour
Weight: 460 g

Compressed air requirement
Air consumption: 180 liters/min
Supply air pressure: 5 bar (72 psi)

Technical specifications

• Model: AVLM2
• Brand: Aardwolf
• Number of pads: 2
• Pad size: 500 x 300 mm
• Working load limit: 500 kg
• Net weight: 48 kg
• Gross weight: 86 kg
• Packaging: L1480 x W460 x H820 mm
• Power: compressed air (pneumatic vacuum pump)
• Air consumption: 180 L/min at 5 bar
• Pad rotation: 45° and 90°
• Tilt: manual 0°–90°
• Includes energy saver and rechargeable battery alarm
