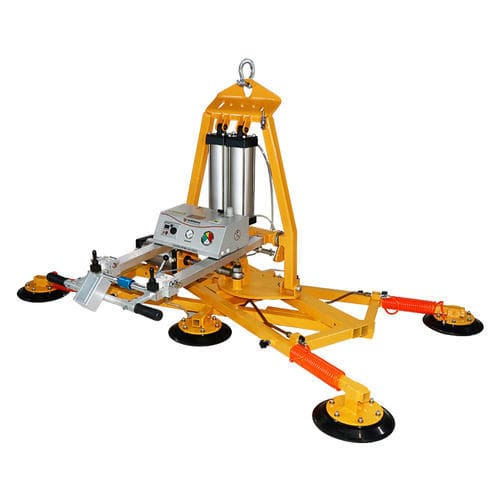

Glass plate vacuum lifting device AVGLP6-500

verticaladjustablehorizontal

General
Tilt, rotate, lift and transport glass sheets at wide angles using compressed air. The AVGLP6-500 vacuum glass lifter is designed for industrial glass handling. The integrated adjustable handlebar extends the lifting coverage and improves flexibility when handling large glass panels.

Features

• Pneumatic vertical-horizontal tilting from 0 to 90°.
• Pneumatic rotation of the glass sheet from 0 to 90° via air cylinder.
• Audio-visual warning/alarm system.
• Attach and release glass sheets with an ON/OFF slide valve.
• Adjustable integrated handlebar for extended coverage and flexible handling of large glass sheets.

Specifications
Metric (mm-kg) / Imperial (inch-lb)
Number of pads: 6
Pad diameter: 300 mm / 11.8"
Working load limit (WLL): 500 kg / 1102 lb
Net weight: 173 kg / 381 lb

Battery information for the alarm system
Power supply: 3.7V LiPo battery
Battery capacity: 2000 mAh x 1
Adapter: DC 5V-1A
Standby time: 720 hours
Charging cycle: 1000 cycles
Charging time: 2 hours
Non-stop working time: 7 hours
Warranty (alarm): 6 months

Compressed air requirement
Air consumption: 180 liters/min
Supply air pressure: 5 bars (72 psi)

Technical specifications

• Model: AVGLP6-500
• Number of pads: 6
• Pad diameter: 300 mm
• Working load limit (WLL): 500 kg
• Net weight: 173 kg
• Alarm power: 3.7V LiPo, 2000 mAh
• Adapter: DC 5V-1A
• Standby time (alarm): 720 hours
• Charging cycles: 1000
• Charging time: 2 hours
• Non-stop working time (alarm): 7 hours
• Warranty (alarm): 6 months
• Air consumption: 180 L/min
• Supply air pressure: 5 bars (72 psi)
• Pneumatic tilting: vertical-horizontal 0–90°
• Pneumatic rotation: 0–90°
• Audio-visual alarm system
• ON/OFF slide valve for attach/release
• Adjustable integrated handlebar for extended coverage
