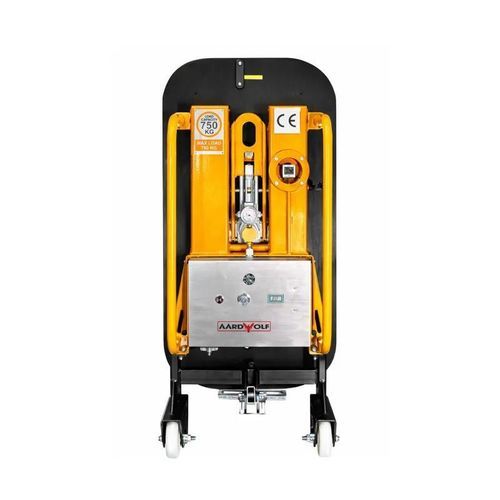

Glass plate vacuum lifting device VGG750

DC powerrotarydouble

General
The VGG750 provides increased lifting capacity for thick or heavy glass panels used in commercial installations. It is fully battery-powered and supports manual tilting and full rotation for precise positioning. Integrated vacuum pressure gauge, battery indicator and automatic vacuum compensation maintain safe, stable operation during handling and installation.

Key Features

• Dual vacuum circuits for redundancy
• Compact, easy-to-operate design
• 750 kg nominal lifting capacity
• 90° tilt and 360° continuous rotation
• Self-contained battery power (no external power required)
• Vacuum pressure and battery status displays
• Automatic vacuum compensation system

Application

• Large and heavy glass panels
• Shopfronts, commercial glazing and façades
• Heavy-duty on-site lifting and installation
• Glass delivery and on-site repositioning

Specifications (table)
Load Capacity: 750 kg
Suction Pad: 1 pc
Tilt & Rotation Type: Manual
Tilt Angle: 90°
Rotation Angle: 360°
Suction & Release Control: Manual slide valve
Battery: DC 12V
N.W./G.W.: 60 kg
Packing Size: 0.5 m³

Technical specifications

• Model name: Vacuum GlassGrip
• Product Code: VGG750
• Load Capacity: 750 kg
• Suction Pad: 1 pc
• Tilt & Rotation Type: Manual
• Tilt Angle: 90°
• Rotation Angle: 360°
• Suction & Release Control: Manual slide valve
• Battery: DC 12V
• Net/Gross Weight: 60 kg
• Packing Size: 0.5 m³
