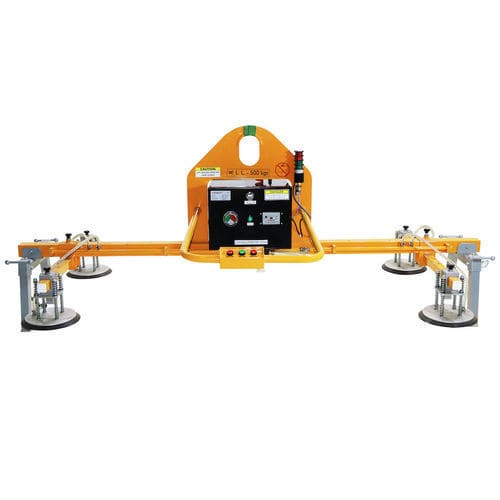

4-point vacuum lifting device AEVLP4-500

for metal sheetsadjustableelectric

General
The Aardwolf electric vacuum lifter model AEVLP4-500 is driven by an electric pump motor and is designed for handling large metal sheets. The main beam and vacuum pads are adjustable to accommodate various sheet sizes. Working load limit (WLL) is up to 500 kg with supported material sizes up to 3000 x 1500 mm.

Features

• Audio-visual safety system to inform the operator of status.
• Pressure-switch control that automatically restarts the vacuum pump in case of pressure loss.

Specifications
Metric | Imperial
Number of pads: 4 | -
Pad diameter: 300 mm | 11.8 in
Working load limit: 500 kg | 1102 lb
Net weight: 192 kg | 423 lb
Gross weight: 289 kg | 637 lb
Packaging dimensions: L 2880 x W 570 x H 1220 mm | 113.4 x 22.4 x 48 in

Battery information for the alarm system
Power supply: 3.7V LiPo battery
Battery capacity: 2000 mAh x 1
Adapter: DC 5V-1A
Standby time: 720 hours
Charging cycle: 1000 cycles
Charging time: 2 hours
Non-stop working time (alarm): 7 hours
Warranty: 6 months

Motor information
Input supply: AC 380V, 3-phase, 50/60 Hz
Vacuum flow rate: 4.1 / 4.7 m3/hour

Technical specifications

• Brand: Aardwolf
• Model: AEVLP4-500
• Type: Electric vacuum lifter for large metal sheets
• Working load limit (WLL): 500 kg
• Maximum material size: up to 3000 x 1500 mm
• Number of pads: 4
• Pad diameter: 300 mm
• Net weight: 192 kg
• Gross weight: 289 kg
• Packaging dimensions: L 2880 x W 570 x H 1220 mm
• Alarm battery: 3.7V LiPo, 2000 mAh
• Alarm adapter: DC 5V-1A
• Alarm standby time: 720 hours
• Charging time (alarm): 2 hours
• Non-stop alarm working time: 7 hours
• Motor input supply: AC 380V, 3-phase, 50/60 Hz
• Vacuum flow rate: 4.1 / 4.7 m3/hour
