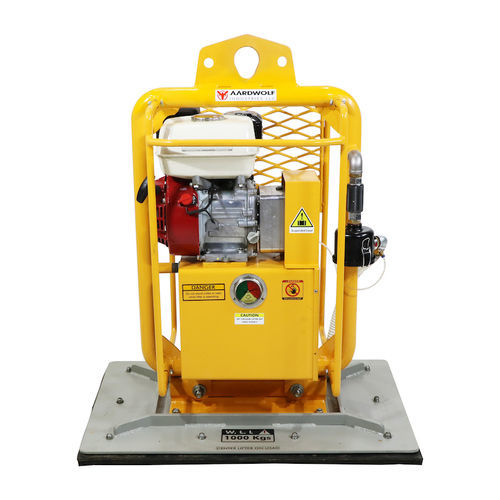

Slab vacuum lifting device APVL-1000

for marblefor the construction industryfor stone slabs

General
This vacuum lifter with a petrol-fuelled engine handles concrete and stone elements up to 1 tonne quickly and precisely. Designed for lifting, positioning and laying natural stone, concrete and marble slabs, steps and similar components. Typically used with a mobile crane to increase on-site flexibility and reduce handling time.

Features

• Compact, robust construction for site use.
• Integrated vacuum gauge for continuous monitoring of vacuum level.
• Lifting eye for secure attachment to a mobile crane.
• Slide valve with ON/OFF positions for controlled gripping and release.

Specifications

• Working load limit: 1000 kg (2204 lb).
• Pad sizes: 800 x 500 mm (31.5" x 19.7").
• Operating vacuum: 0.98 bar.

Technical data

• Product code: APVL-1000.
• Suitable for natural stone, concrete and marble slabs, steps.
• Designed for use with a mobile crane (lifting eye).
• Controls: integrated vacuum gauge; slide valve ON/OFF.
• Compact and robust design optimised for construction site operation.
