4-point vacuum lifter AVGLP4-400
glass plateverticalhorizontal

4-point vacuum lifter - AVGLP4-400 - AARDWOLF INDUSTRIES LLC - glass plate / vertical / horizontal
4-point vacuum lifter - AVGLP4-400 - AARDWOLF INDUSTRIES LLC - glass plate / vertical / horizontal
4-point vacuum lifter - AVGLP4-400 - AARDWOLF INDUSTRIES LLC - glass plate / vertical / horizontal - image - 2
4-point vacuum lifter - AVGLP4-400 - AARDWOLF INDUSTRIES LLC - glass plate / vertical / horizontal - image - 3
4-point vacuum lifter - AVGLP4-400 - AARDWOLF INDUSTRIES LLC - glass plate / vertical / horizontal - image - 4
4-point vacuum lifter - AVGLP4-400 - AARDWOLF INDUSTRIES LLC - glass plate / vertical / horizontal - image - 5
Add to favorites
Compare this product

Characteristics

Model
4-point
Product applications
glass plate
Type
vertical, horizontal
Power
pneumatic
Options
stainless steel, 90°-pivoting, automatic, battery-powered
Carrying capacity

Max.: 500 kg
(1,102 lb)

Min.: 400 kg
(882 lb)

Number of cups

4 unit

Weight

Max.: 79 kg
(174.17 lb)

Min.: 79 kg
(174.17 lb)

Description

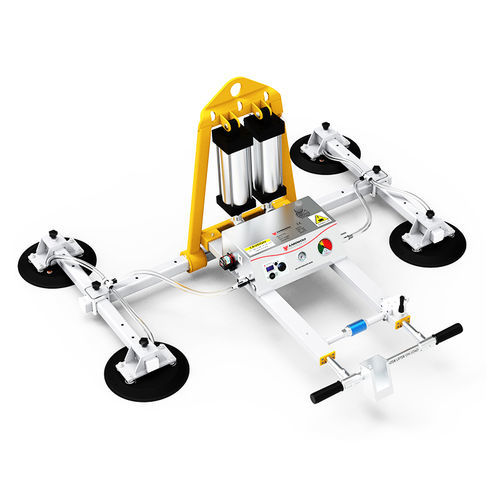

The Aardwolf AVGLP4-400 Vacuum Glass Lifter is a pneumatic lifting device designed for handling, tilting and positioning glass panels in fabrication workshops and industrial applications. Its 0°–90° pneumatic tilting mechanism allows glass sheets to be moved between horizontal and vertical positions.

The lifter features four vacuum suction pads with a 280 mm sealing diameter, a stainless steel vacuum reservoir to provide vacuum reserve during an unexpected power interruption, and automatic vacuum pumping if vacuum loss occurs. An acoustic and visual alarm provides operational warnings, while an ON/OFF slide valve controls attachment and release.

Features
  • Pneumatic vertical-horizontal tilting from 0° to 90°.
  • Stainless steel vacuum reservoir for safety in case of unexpected power loss.
  • Automatic vacuum re-pumping in the event of vacuum loss.
  • Acoustic and visual alarm with independent rechargeable battery.
  • Attach/release control via ON/OFF slide valve; integrated control handle for operator commands.


Specifications
  • Metric / Imperial
  • Number of pads: 4
  • Pad diameter (seal to seal): 280 mm / 11 in
  • Working load limit: Vertical 400 kg / Horizontal 500 kg
  • Net weight: 79 kg / 174 lb
  • Packaging dimensions: L 1480 × W 380 × H 960 mm / 58.2" × 15" × 37.8"


Battery information for the alarm system
Power supply: 3.7 V LiPo battery
Battery capacity: 2000 mAh × 1
Standby time: 720 hours
Charging cycle: 1000 cycles
Charging time: 2 hours
Non-stop working time: 7 hours
Warranty: 6 months

Compressed air requirement
Air consumption: 180 L/min
Supply air pressure: 5 bar (≈72 psi)

Technical specifications
  • Model: AVGLP4-400
  • Power type: Pneumatic
  • Tilting: 0–90° pneumatic vertical/horizontal
  • Vacuum safety: Stainless steel vacuum reservoir
  • Alarm: Acoustic and visual with rechargeable LiPo battery
  • Control: ON/OFF slide valve for take/release; integrated handle controls
  • Pads: 4 × Ø280 mm (seal to seal)
  • Capacities: Vertical 400 kg; Horizontal 500 kg
  • Net weight: 79 kg
  • Packaging: 1480 × 380 × 960 mm
  • Air consumption: 180 L/min at 5 bar
  • Battery: 3.7 V LiPo, 2000 mAh (standby 720 h; charge 2 h; runtime 7 h)
  • Warranty: 6 months (alarm system)
