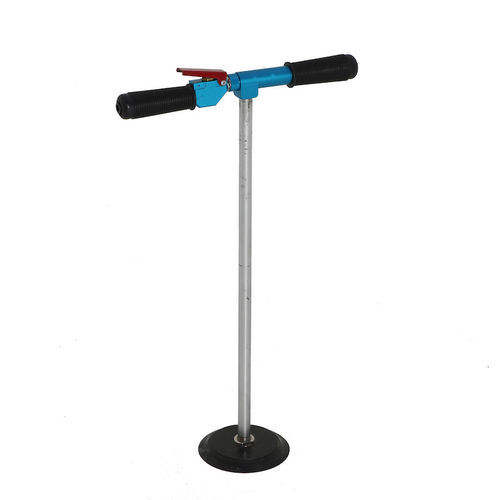

Slab vacuum lifting device AVPL40

for flat loadsfor stone slabsfor concrete slabs

General
The Aardwolf Vacuum Paver Lifter AVPL40 generates vacuum using a standard air compressor (minimum 5.2 cfm @ 72 psi) through a hose to a handle-mounted vacuum pad. The operator places the pad on tile or stone to form a suction seal, lifts and positions the unit, then releases via the Venturi trigger on the handle. Designed for one-person operation with two handles to reduce manual handling strain.

Features

• Handling capacity up to 40 kg (88 lb) with standard pad.
• Includes two handles to allow single-operator use.
• Operates with standard air compressors (min. 5.2 cfm @ 72 psi).
• Venturi trigger on handle for quick vacuum release.
• Industrial male quick-connect for compressed air supply.
• Optional vacuum cup: 150 mm (6") diameter rated 40 kg available on request.
• Pad options: 120 x 220 mm (W.L.L. 40 kg) and 80 x 120 mm (W.L.L. 12 kg).

Specification
Metric | Imperial
Pad sizes with W.L.L.: 120 x 220 mm: 40 kg — 4 3/4'' x 8 5/8'': 88 lbs
80 x 120 mm: 12 kg — 3 1/8'' x 4 3/4'': 26 lbs
Net weight: 2.9 kg — 6.3 lbs
Gross weight: 3.4 kg — 7.5 lbs
Packaging dimensions: 670 x 170 x 80 mm — approx. 26 3/8'' x 6 3/4'' x 3 1/8''

Technical specifications

• Model: AVPL40
• Maximum handling capacity (standard pad): up to 40 kg (88 lb)
• Air supply requirement: standard air compressor, minimum 5.2 cfm @ 72 psi
• Vacuum release: Venturi trigger on handle for quick release
• Handles: two handles for one-person operation
• Connection: industrial male quick connect
• Optional accessory: 150 mm (6") vacuum cup (rating: 40 kg / 88 lb)
• Pad sizes (metric): 120 x 220 mm (W.L.L. 40 kg); 80 x 120 mm (W.L.L. 12 kg)
• Net weight: 2.9 kg; Gross weight: 3.4 kg
• Packaging dimensions: 670 x 170 x 80 mm
