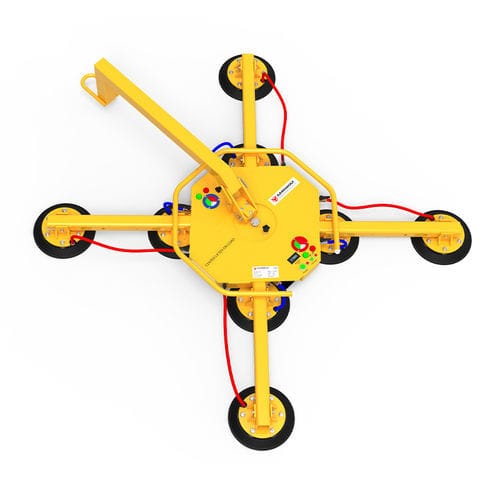

4-point vacuum lifting device ARGL-500DS

glass plateadjustableDC power

General
The DC Powered Vacuum Glass Lifter ARGL-500DS is an electrically powered vacuum lifter with a 4-bar tilting mechanism and multi-angle rotation. It enables safe vertical rotation and manual tilting of large glass sheets. Two independent vacuum circuits provide mutual backup in case of a circuit failure to maintain operator safety during handling.

Features

• Double redundancy with a rated capacity of 500 kg.
• Eight spring-loaded suction pads, Ø 300 mm.
• 360° rotation in 45° steps and manual tilt 90° in 15° increments.
• Four extendable/retractable arms for adjustable support.
• Automatic vacuum pump with audio and visual alarms.
• Cordless operation via 12V high-capacity battery supply (dual batteries).

Specifications
Metric / Imperial
Number of pads: 8 | Pad diameter: 300 mm / 11.8 in
Working load limit (vertical): 400 kg; (horizontal): 500 kg / 882 lb; 1102 lb
Rated capacity (redundancy): 500 kg
Net weight: 81 kg / 179 lb
Gross weight: 107 kg / 236 lb
Packaging dimensions: L1070 x W970 x H450 mm / 42.1 in x 38.2 in x 17.7 in

Battery information (lifter)
Battery code: M12B6 Milwaukee
Type: Lithium-ION
Voltage: 12V
Capacity: 6.0 Ah
Quantity: 2
Continuous operation (battery): ~2 hours; typical working cycle: up to 6 hours depending on use

Battery information (charger)
Charger code: C12C Milwaukee
Input supply voltage: 100–240 VAC
Output: 12V, 3.0 A
Quantity: 2
Full charge time: ~2.5 hours
Charger weight: 460 g

Motor information
Vacuum flow rate: 32.5 liters/min
Motor: 12V DC, 4 A

Technical specifications

• Model: ARGL-500DS
• Brand: Aardwolf
• Tilting mechanism: 4-bar
• Rotation: 360° (45° steps)
• Tilt: Manual 90° (15° steps)
• Extensions: 4 extendable arms
• Safety: Two independent vacuum circuits with mutual backup; audio/visual alarms
• Power supply: 12V battery (2 x M12B6)
• Vacuum flow: 32.5 L/min; Motor: 12V DC-4A
