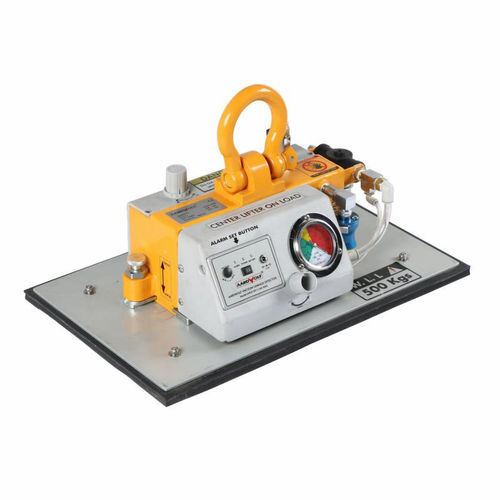

Stone slab vacuum lifting device AHVL500

glass platefor marblefor metal sheets

General
The AHVL500 vacuum lifter is powered by a Venturi vacuum generator and requires a compressed-air supply; no electrical power is required for the vacuum generator. The unit uses four replaceable vacuum pads and is designed for horizontal lifting of plate-like materials.

Features

• Four adjustable and replaceable vacuum pads to match material size and surface.
• ON/OFF slide valve for attach and release operations.
• Independent acoustic alarm powered by a small rechargeable battery.
• Vacuum gauge for visual low-vacuum warning.

Applications / Materials

• Suitable for stone (granite, marble), concrete, foam-faced materials; also applicable to glass and metal depending on pad selection.

Working load limits (pad sizes)
Metric: 520 x 125 mm: 120 kg; 520 x 160 mm: 180 kg; 520 x 220 mm: 290 kg; 520 x 320 mm: 480 kg
Imperial: 20.5" x 5": 265 lb; 20.5" x 6.3": 397 lb; 20.5" x 8.7": 639 lb; 20.5" x 12.6": 1058 lb

Weight & packaging
Net weight: 28.5 kg
Gross weight: 34 kg
Packaging dimensions: L.570 x W.350 x H.290 mm (22.4" x 13.7" x 11.4")

Battery information for the alarm system
Power supply: 3.7 V LiPo battery
Battery capacity: 2000 mAh x 1
Adapter: DC 5V - 1A
Standby time: 720 hours
Charging cycles: 1000
Charging time: 2 hours
Non-stop working time (alarm): approx. 7 hours
Warranty (battery): 6 months

Compressed air requirement
Air consumption: 180 L/min
Supply air pressure: 5 bars (≈72 psi)

Technical specifications

• Model: AHVL500
• Vacuum source: Venturi vacuum generator (requires compressed air; vacuum generator has no moving parts)
• Pads: 4 replaceable, adjustable vacuum pads; compatible sizes listed under working load limits
• Control: ON/OFF slide valve for attach/release
• Alarm: independent acoustic alarm with rechargeable battery; vacuum gauge for visual warning
• Intended use: horizontal lifting of slabs and plate materials
• Air consumption and supply pressure as above
